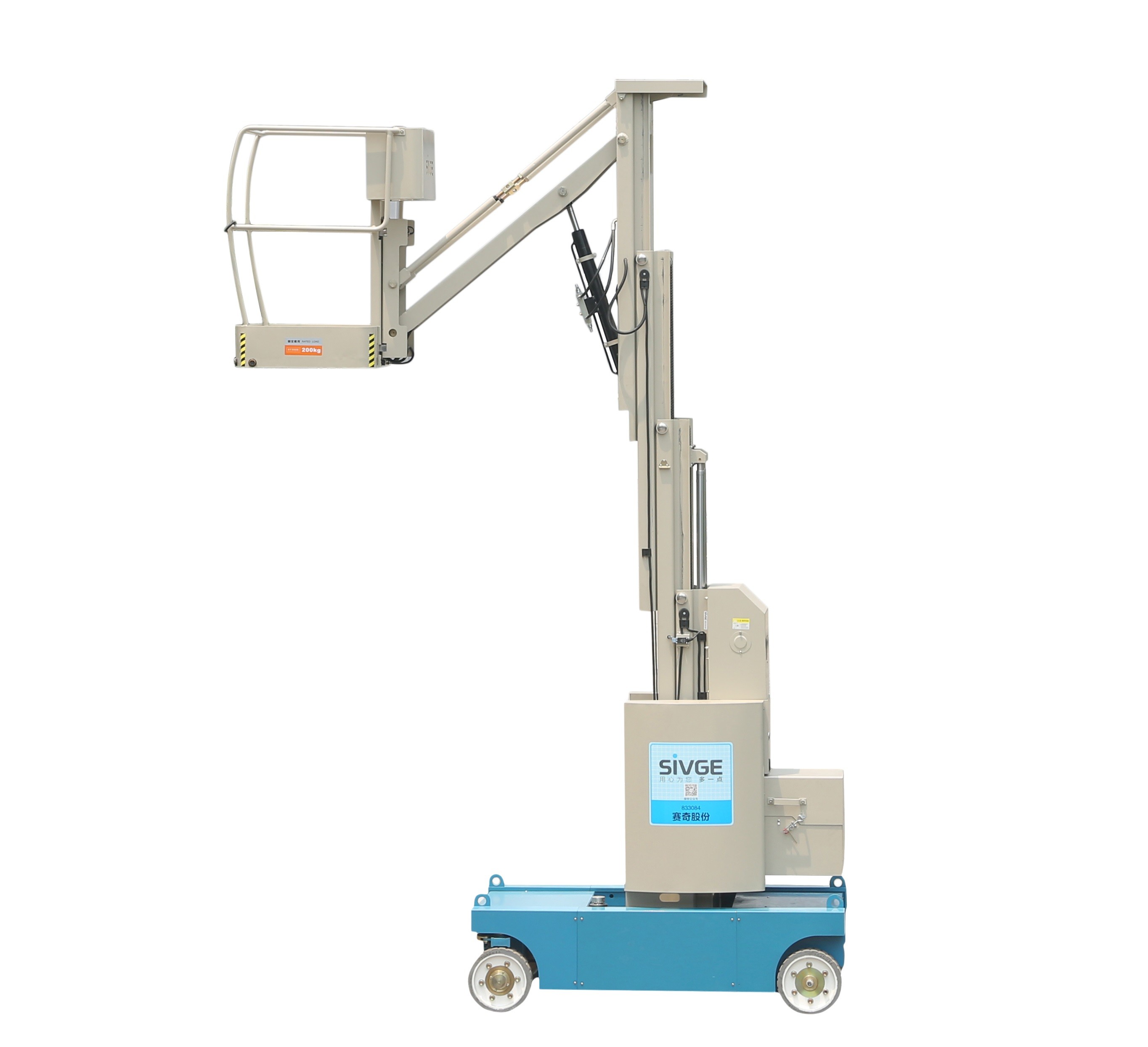

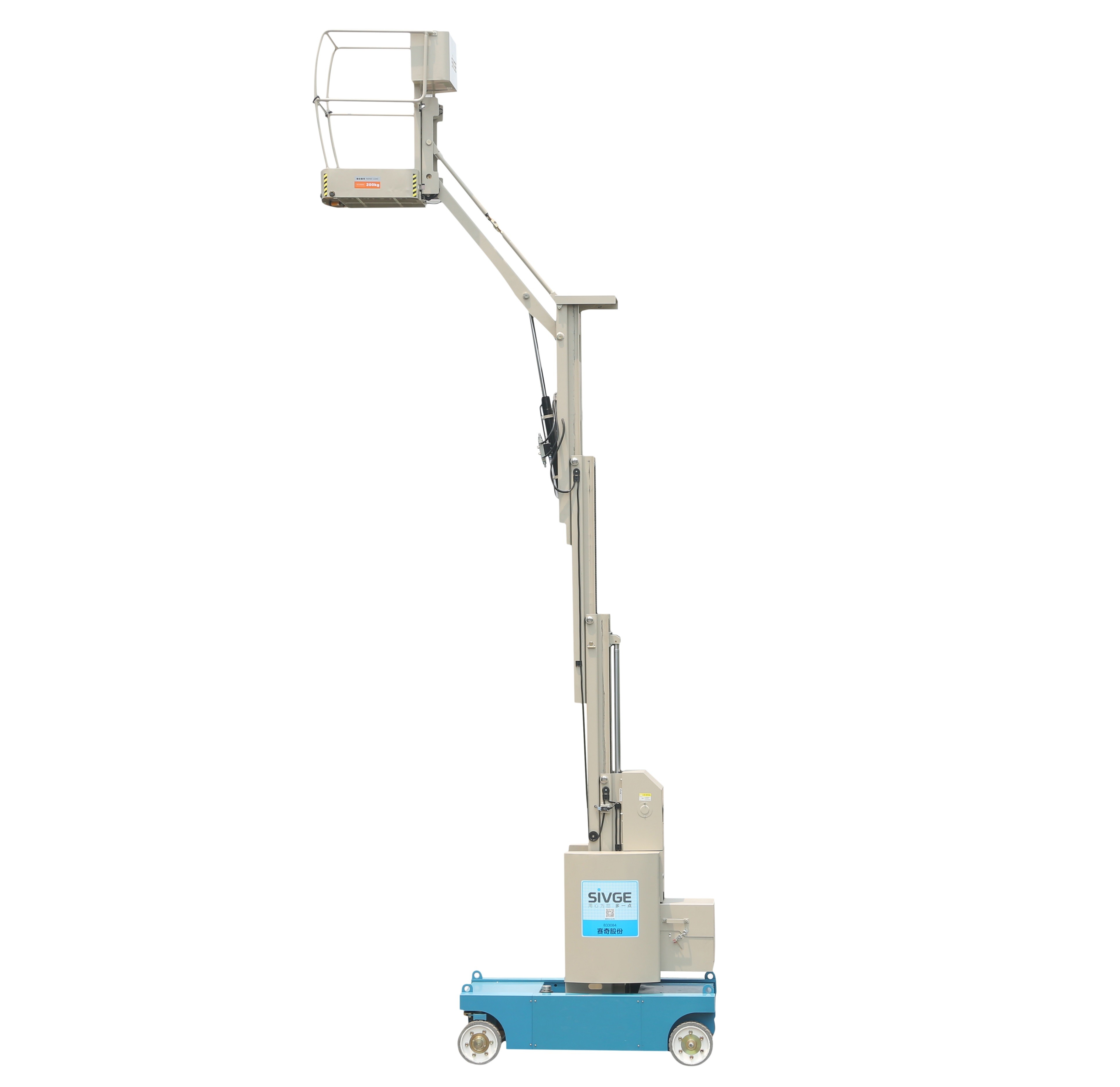

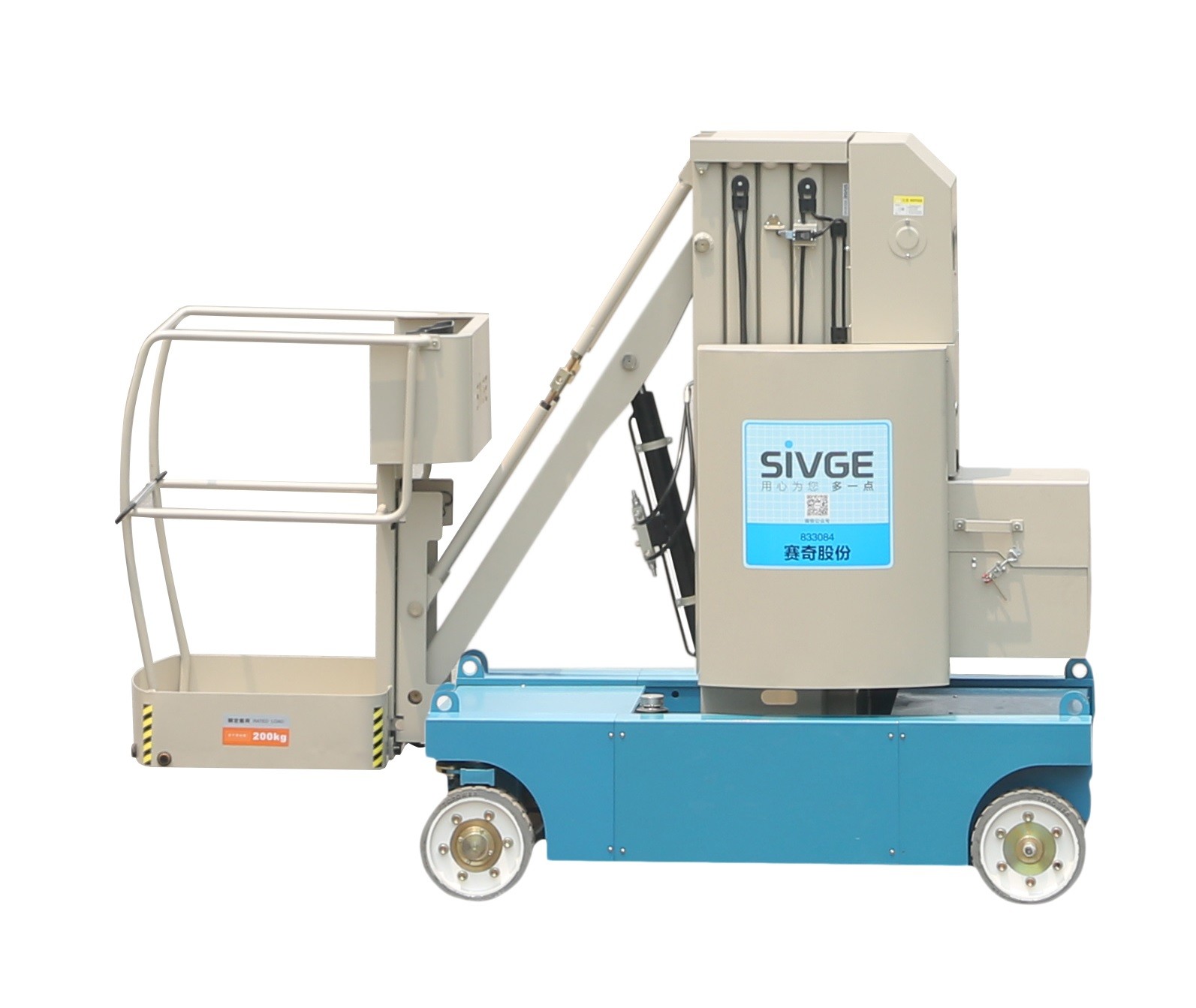

Indoor Compact Light Weight Aluminum Aerial Work Platform Self Propelled Boom Lift

Basic Information
Place of Origin: CHINA
Brand Name: SIVGE
Certification: ISO9001
Model Number: GTHZ6-410670
Minimum Order Quantity: 1 unit
Price: USD 14000- 28000 / Units
Packaging Details: Standard
Delivery Time: within 30 working days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 300 units per month
Detail Information
Model: GTHZ6-4106 / GTHZ8-5108 Type: Vertical Mast Boom Lifts
Capacity: 200Kg Reach Out: 3 Meters With 360 Degree Rotation
Material: Rainforced Aluminum Alloy Power: DC Battery
Feature: Can Fit Into Elevator
High Light:

Mobile Elevated Platform

,

Hydraulic Lift Platform

,

Light Weight Aluminum Aerial Work Platform


Product Description



Product Description






Download Catalog: Z51 self-propelled mast type boom lift.pdf









Series Z51
Model-code GTHZ6-4106/GTHZ8-5108
Platform height(m) 6.0m
Working height(m) 8.0m
Outreach 3m
Platform rotation 360°
Capacity(kg)/occupants

125Kg/1 for outdoor,200Kg/1 for indoor

Platform size(mm) 750*720mm
Stowed length(mm) 2700mm
Stowed width(mm) 990mm
Stowed height(mm) 1965mm
Machine weight(kg) 1750Kg
Moving methods Drivable when fully lifted up
Outside/inside turning radius 1.9/0m
Travel speed(Stowed)(km/h) 3.0Km/h
Travel speed (Lift)(km/h) 0.8Km/h
Climb ability 15%
Ground Clearance 66mm
Wheelbase 1445mm
Front wheel Steering wheel 12inch
Rear wheel Driving wheel 12inch
Power supply DC 24V
Power input(kw) 1.5kw
Battery 4*12V/260Ah
Max. allowed wind speed 12.5m/s for outdoor, 4.5m/s for indoor,
Rated oil pressure ≤16MPa




Application:

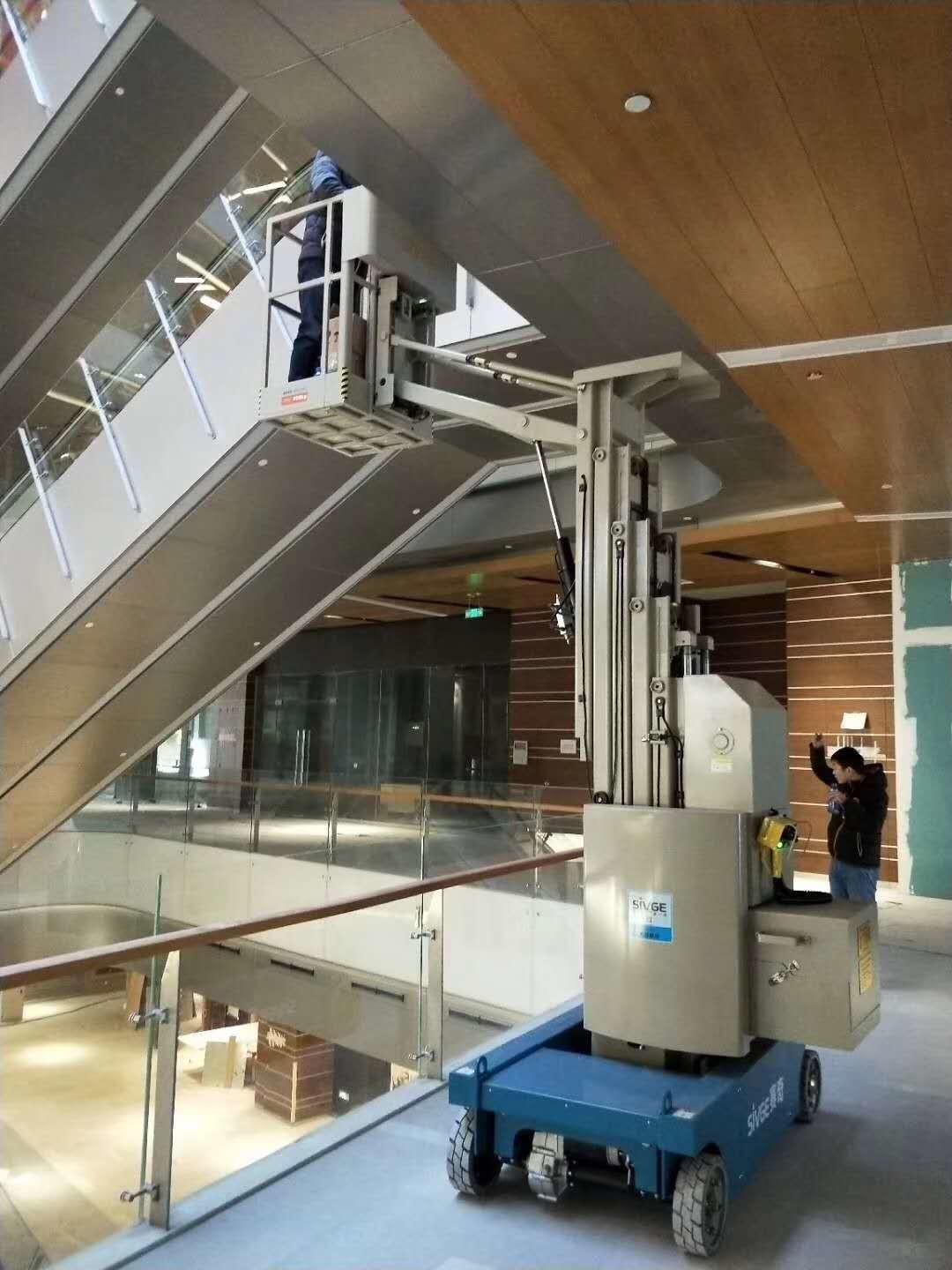

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.



Working Condition:



Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.





Features:

l Suitable for one person to work upraised

l Dual controls operation

l Emergency stop buttons at both controls

l Emergency lowering device in case of power supply future

l Overload limit

l Double safety protection with leveling stabilizers and outriggers support

l Forklift pocket

l No-marking wheels

l Low maintenance requirements will save your time and Money

If the above specification not suitable for your working condition, please contact us for further customize service.





Professional & Innovative

SIVGE has committed to research & development in aerial work platforms more than 20 years. We obtain dozens of patents and apply these patents in our products.these patents all related to portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the national standards builder of mast aerial work platform, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.





Safe & Stable

User's safety is the basic concern point of SIVGE.

hydraulic redundancystabilize systemmotion performancecontrol systemquality 1


Q1:What is your lead time for regular order?

A: Within 10- 30 working days after we receive the order. Different products with different lead time.



Q2:What payment method you accept?

A: Offline: T/T, L/C; Online: Alibaba Trade Assurance.

We have online and offline, two ways.

Online: start order through Alibaba trade assurance, make payment to allocated account, we arrange delivery

Offline: we send Proforma invoice to you directly, make payment to our account, we arrange delivery .



Q3:What's your Price Terms?

A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.



Q4:Do you offer Customize service?

A:Yes, we can provide customized products, both OEM and ODM are acceptable.



Q5:What is your warranty period?

A:It depends on different kinds of parts, usually 12 months, Offer free parts for replacement.



Q6:How to proceed an order?

A: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.

Secondly, we send you suggestions and quotations according to your working condition.

Thirdly, you confirm the quotation and places deposit.

Then we arrange the production. Once we finish the production, we will arrange the shipment according the price term
