Top quality movable scissor lift platform 16 meter for construction

Basic Information
Place of Origin: China
Brand Name: SIVGE
Certification: CE / ISO / SGS / KCS
Model Number: SC16
Minimum Order Quantity: 2 Unit
Price: USD 13999-14599 Unit
Packaging Details: Standard
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 20000
Detail Information
Type: Self Propelled Scissor Lifts Working Height: 16 Meter
Platform Height: 15.7 Meter Lift Capacity: 200 Kg
Overall Width: 1.25 M Platform Size: 2.63 X1.05 M
Battery: 4X12V/300AH Overall Length: 2.83 M

Product Description

Top quality movable scissor lift platform 16 meter for construction





Electric self-propelled scissor lift is equipped with two types of motors, hydraulic lift motor and electric drive motor. The hydraulic lift motor is powered, and the lift is stable. The electric drive motor provides power for forward, backward and rotation. The working principle is different from the hydraulically driven self-propelled scissor lift.

The electric motor drives the self-propelled scissor lift to move and lift all powered by batteries. The operator can control all actions such as lifting, moving and turning of the platform through the control system.





Standered configuration

● Proportion control
● Charging protection
● Automatic brake
● Tilt sensor alarm
● Fault diagnosis
● Energency stop
● Emergency lowering
● Pothole protection
● Foldable guardrails
● Extendable platform
● Bio-reducible hydraulic
● Flashing beacon
● Hour meter
● Self-lock gate
● Horn
● Action buzzer
● Safety Bracket
● Trackless tire
Main Features:


* The latest DTC control system with fault diagnosis system and voice guide.
* Hydraulic driving with balance valve, travel brake is more stable.
* With optional configuration of DC power drive, battery life is longer.
* Equipped with quick Charger, it is more time-saving and efficient.
* Double loading system, using efficiency of equipment is much improved.
* Centered scissor arm design, the comfort and stability of platform is improved.
* Higher working height with same numbers of scissor arms.
* Adopting electrophoresis coated, anti-corrosion performance triply improved










Brand

SIVGE

Model

SC16

Platform height

13.7 m

Working height

15.7 m

Load capacity

200kg

Table size

2.63*1.05 m

Machine weight

3380 kg

Overall width

1.25 m

Stowed size

2.85*1.25*2.16 m

Driving mode

Self propelled

Lifting power

DC 24V




Product Description




APPLICATIONS:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.


PARAMETERS:





If the above specification cannot fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.

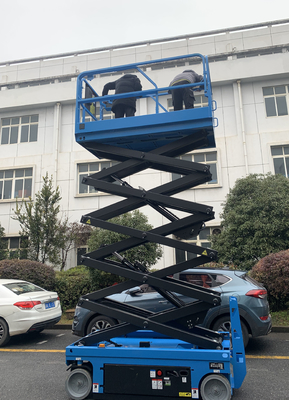

Top quality movable scissor lift platform 16 meter for construction 1





Top quality movable scissor lift platform 16 meter for construction 2



Top quality movable scissor lift platform 16 meter for construction 3
