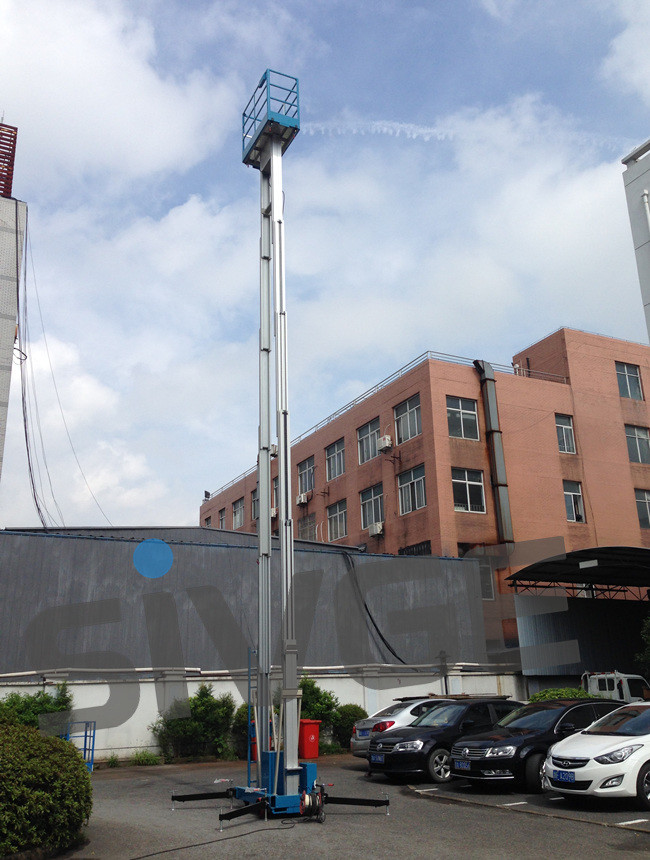

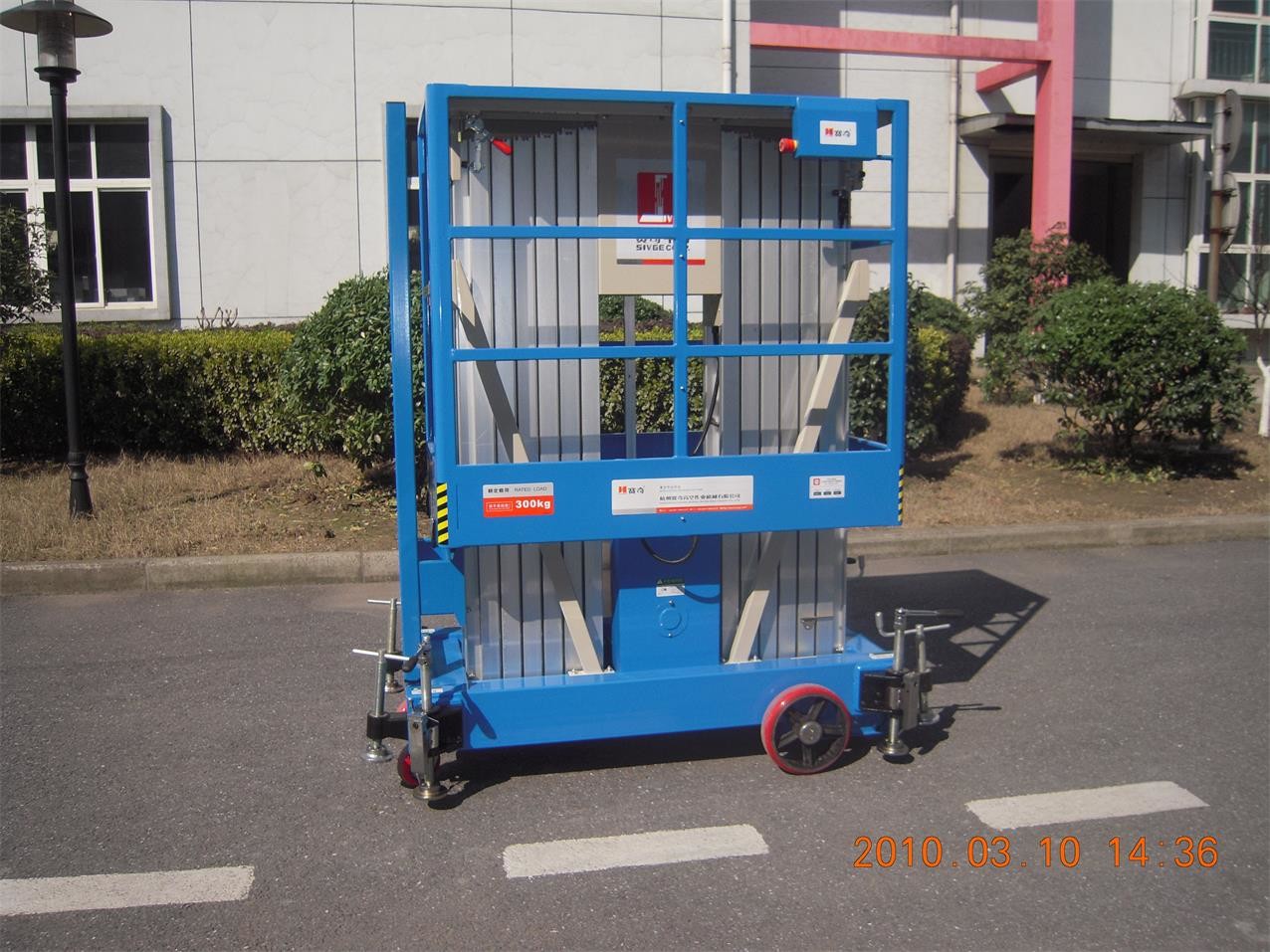

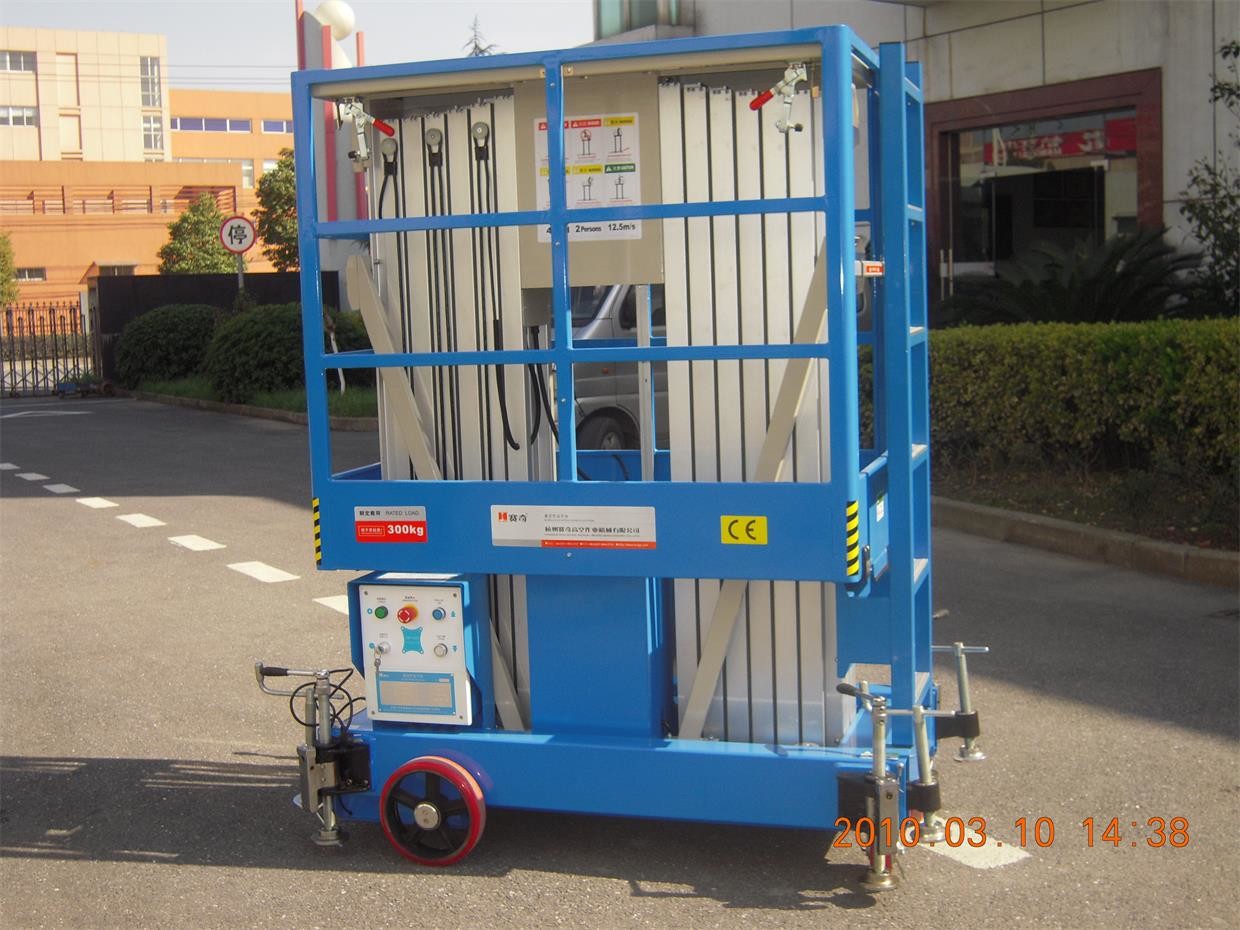

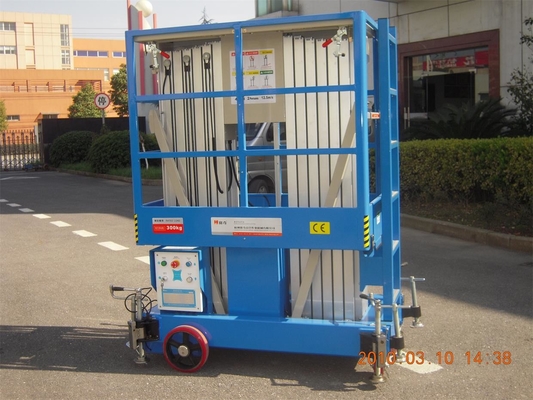

8m Hydraulic Scissor Working Platform Double Mast For Window Cleaning

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
I'm Online Chat Now

8m Hydraulic Scissor Working Platform Double Mast For Window Cleaning

China 8m Hydraulic Scissor Working Platform Double Mast For Window Cleaning supplier
8m Hydraulic Scissor Working Platform Double Mast For Window Cleaning supplier 8m Hydraulic Scissor Working Platform Double Mast For Window Cleaning supplier 8m Hydraulic Scissor Working Platform Double Mast For Window Cleaning supplier

Large Image :  8m Hydraulic Scissor Working Platform Double Mast For Window Cleaning

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE
Model Number: GTWY8-2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 10 pcs in 20' GP with steel pallet package
Delivery Time: 7-30 work days
Payment Terms: T/T, D/P, L/C
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Name: Scissor Lift Work Platform Safety Certificate: CE
Quality Management Certificate: ISO9001:2008 Management System: ISO14001 OHSAS18001
Max Working Height (m ): 9.7 Rated Load (kg): 300
Number Of Person Allowed: 2 Color: According To Your Request
Standards: EN280:2013



8m hydraulic double Mast lifting platform / scissor working platform for two men windlow cleaning



Product Description



1.Considering security problem, the platform generally is equipped with antiskid insulated plastic water groove boards, easy to change.
2. Ce double mast electric one man lift, electric portable hydraulic lift, the other with a hand pump, used for power failure.
3.Mobile and flexible, smooth lifting, easy operation, large capacity.
4.The series Ce double  mast electric one man lift with a multi purpose, indoor and outdoor use can bewidely used in railway stations,airports, bridges, inquiries, internal and external
mechanical plant installation,equipment maintenance, construction and maintenance and so on.



Specification



Brand SIVGE
Model GTWY8-2008
Max platform height (m ) 8
Max working height (m ) 9.7
Rated load (kg) 300
Number of person allowed 2
Platform size (mm) 1200*600
Max outrigger footprint (m) 2020*2000
Power supply (V) AC*or DC24
Power input (kw) AC:1.5 / DC:2.2
Stowed dimension (mm) 1390*880*1860
Machine weight (for reference) 610kg







Packaging & Shipping



Delivery time is usually 30 days according to order qty. and models.

LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-rust covers (10PCS/20GP)





 Good service



1.Technical support online service provided.
2.One-year nationwide warranty provided.
3. All the machines will be tested before shipment.

4.Several sets wearing parts will be free for you.

5.Technical files service provided.





Keeping innovations

We are very welcome each suggestions from you and hope we can make progress

together. We can design a new machine according to your requirements until to your satisfaction.
