Aluminium Alloy Trailer Mounted Lift 8m Hydraulic Trailer Bucket Lift

Basic Information
Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWY8-2008T
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: steel pallets for FCL; plywood case for LCL
Delivery Time: 7-30 working days
Payment Terms: D/P, L/C, T/T
Supply Ability: 100 units per month
Detail Information
Name: Trailer Mounted Man Lift Max.working Height: 10 Meter
Rated Load/capacity: 300kg Number Of Persons Allowed: 2 Persons
Size Of Platform: 1200*600mm Speed: 6m/min
Max. Platform Height: 8 Meter
High Light:

Trailer Boom Lift

,

Trailer Man Lift


Product Description



8m Hydraulic aluminium alloy trailer mounted Lift / trailer type man lift





Occasions suitable to use this machine:



Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.



Places may in need of this kind of machine:



business/convention center, airports, auto stations and highway toll station etc.





Specifications of

8m Hydraulic aluminium alloy trailer mounted Lift / trailer type man lift



Manufacturer SIVGE
Country of origin China
Model GTWY8-2008T, dual mast
Max. Working height 10 m
Max. Platform height  8 m
Platform capacity 300kg
Platform dimension L1200×W600
Stored height 1960mm
Stored length 2550mm
Stored width 1100mm
Machine weight about 720kg
Power supply

 DC24V with rechargeable battery

Power input 1.2kw
Dual control Platform and base control
Standard EN280

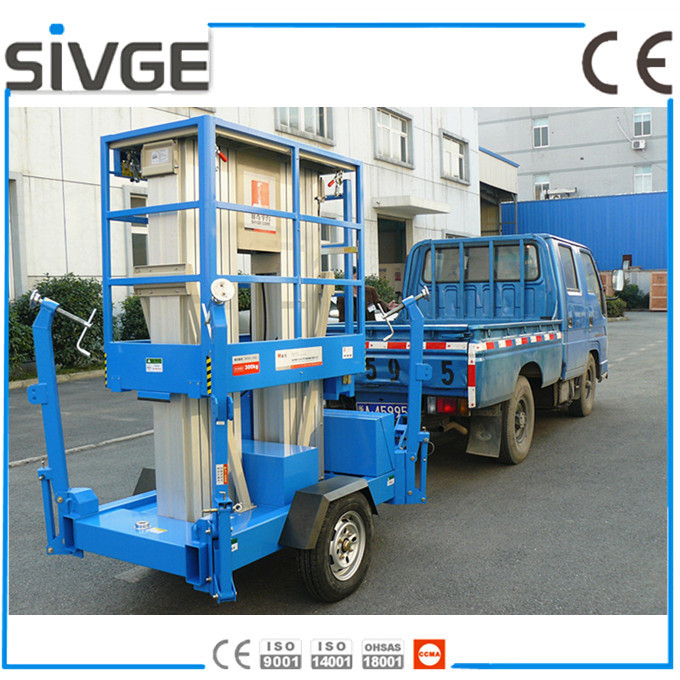

Photos as below;







Product features

  •  Dual controls operation
  •  Compact design with easy quick guardrail assemblage
  •  Emergency stop buttons at both controls
  •  Emergency lowering device in case of power supply failure
  •  24V safe control voltage
  •  Overload limit
  •  Double safety protection with leveling stabilizers and outriggers support
  •  Hoist points at four corners
  •  No-marking wheels
  •  Conform to EN 280:2013
  • The hydraulic pipe that we use is steel pipe (even we use hammer to hit against the pipe, the pipe will not break with oil leakage) while others usually use hose which is easy for leaking and damage by hit or during usage.
  • Mast cover: PU mast cover protects the masts from dusts, and will not hurt your fingers which the steel cover cannot achieve.

Safe & Stable

User's safety is the basic concern point of SIVGE.

Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.





Packing &Shipping


LCL: plywood case with steel pallet at bottom

FCL: 7PCS per 20GP by steel pallet with anti-dust covers

Delivery time is usually 30 days according to order qty. and models.
