Four Mast Aerial Mobile Elevating Work Platform With 8m Working Height

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
"Its really a good handy machine working nicely. " The machine I am using in my mall, there are three four people came and see it in operation as well I expalin the machine usage and importance, may be they will contact you or me in future, I will let you know. -----Technical manager of Lucky One Mall in Pakistan.

—— Ehtesham Hussain

I'm Online Chat Now

Four Mast Aerial Mobile Elevating Work Platform With 8m Working Height

China Four Mast Aerial Mobile Elevating Work Platform With 8m Working Height supplier

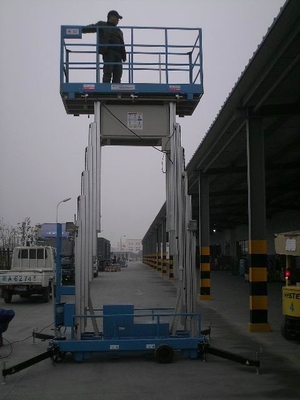

Large Image :  Four Mast Aerial Mobile Elevating Work Platform With 8m Working Height

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWY6-4006

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: plywood case for LCL; steel pallets for FCL
Delivery Time: 7-40 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Application: Aerial Work Max. Platform Height: 6 Meter
Max.working Height: 8 Meter Rated Load/capacity: 480kg For 2 Persons
Size Of Platform: 1480*1000mm Stowed Dimension: 2360*1250*1860mm
Standard: CE/TUV/SGS Move Method: Manual Push Around / Electrical Motor Propelled

Aerial work with 8m working height Four Mast Electric Lift Table / aerial lifting platform





Places may in need of this kind of machine:



Mobile elevating work platform with a multi purpose, indoor and outdoor in railway stations, airports, bridges, inquiries, internal and external mechanical plant installation, equipment maintenance, construction and maintenance and so on.With the equipment, aerial work will be done more efficiently and more safety.





Specifications of

Aerial work with 8m working height Four Mast Electric Lift Table / aerial lifting platform



Manufacturer

SIVGE

Country of origin

China

Model

GTWY6-4006

Max. Working height

8m

Max. Platform height

6m

Platform capacity

480kg for two persons with tools

Platform dimension

L1480×W1000

Stored height

1860mm

Stored length

2360mm

Stored width

1250mm

Length with outriggers

3350mm

Width with outriggers

3000mm

Machine weight about

1300kg

Power supply

AC220V/50Hz

Power input

AC: 1.5kw/0.75kw

Double control

Platform and base control

Standard

CE (EN280:2013)


Optional function:



1. Move method can be manual push type or motor-propelled;



2. Horizontal platform extension: 800mm, 1000mm, 1300mm;





Product features

  •  Dual controls operation
  •  24V safe control voltage
  •  Overload limit
  •  Double safety protection with leveling stabilizers and outriggers support
  •  Compact design with easy quick guardrail assemblage
  •  Emergency stop buttons at both controls
  •  Emergency lowering device in case of power supply failure
  •  Forklift pocket
  •  No-marking wheels
  •  Low maintenance requirements will save you time and money.
  •  Conform to EN 280:2013

Safe & Stable

User's safety is the basic concern point of SIVGE.

Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.





Safety of Mechanism System



l CE certified stabilizers and electric safety switch elements form the interlock for platform ascending and descending.All mechanism strength for force borne structure are carefully calculated and strictly tested by experimentation, safety factor never less than the standard requirement.

l In stabilizers equipped Aerial Work Platform, patented double protection outriggers eliminate the clearance between the stabilizer and chassis so as to avoid the equipment fluctuating.





Comfort and Convenience

QQ20130809143938

l The ratchet wheel swing handle of threaded support bolts in the stabilizers equipped Aerial Work Platform makes it easy to adjust for achieving precise leveling of the platform.

l The assembly of movable platform guard rail could be achieved by just an ascending and descending running, and the rail position is secured and locked by a patented supporting and cramping device, it’s very convenient.

l High-strength aluminum alloy are used for all lifting mast which is light, easy and convenient to move.

l Forklift pocket for safe and easy transportation.

l Compact design makes it easy in passing through narrow and lower passages.

l The safe and convenient bubble level meter.





Packing & Shipping

  • LCL: plywood case with steel pallet at bottom
  • FCL: steel pallet with anti-dust covers​
  • Delivery time is usually 40 days according to order qty. and models.
