Aluminum Alloy Push Around Vertical Mast Lift 22 M Motor Driven For Window Cleaning

Basic Information
Place of Origin: CHINA
Brand Name: SIVGE
Certification: CE/GMC/ISO9001
Model Number: GTWB22-4222
Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: steel pallet with anti-rust covers
Delivery Time: 30-50 work days
Payment Terms: T/T, L/C, D/P
Supply Ability: 30 units per month
Detail Information
Product: Electric Aerial Order Picker Standards: EN280:2013
Move Method: Powered Self-propeller Loading Capacity: 100kg
Material: Aluminum Alloy Color: Blue
High Light:

Push Around Vertical Lift

,

Vertical Personnel Lift


Product Description

22 m aluminum alloy blue vertical mast lift / motor driven lifting platform for window cleaning





1. CE certificated.
2. Suitable for one persons work on
3. Best quality and performance
4. Good reliable after-sales service





Product Description



Specification

of 22 m aluminum alloy blue vertical mast lift / motor driven lifting platform for window cleaning



Brand SIVGE
Model GTWB22-4222
Max. Platform Height 22m
Max. Working Height 24m
Loading Capacity 100kg
Number Of Person Allowed 1
Platform Dimension (mm) 700* 700
Outrigger Footprint (mm) 4200*3410
Power Supply AC220V/50Hz
Power Input(kw) 1.5/1.5kw
Move method powered self-propeller
Stowed Dimension (mm) 3220*1660*2780
Machine Weight (kg) About 2700

Optional function:

1. Move method can be manual push type or motor-propelled;

2. special specification or design service offered.



If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.

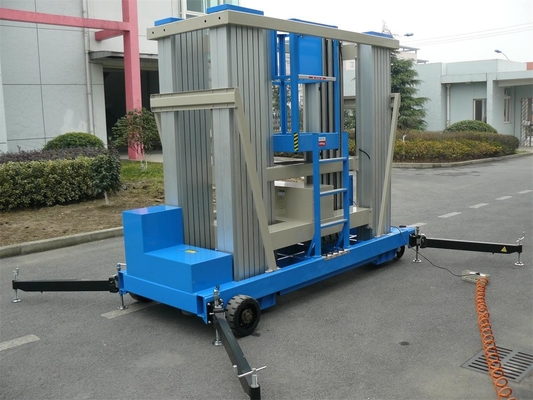

Machine photos:



Aluminum Alloy Push Around Vertical Mast Lift 22 M Motor Driven For Window Cleaning 0





Packaging & Shipping
  • steel pallet with anti-rust covers
  • Open top container is in need
  • Delivery time is usually 45 days according to order qty. and models.
