Multi Mast Aluminium Work Platform , 14m One Man Lift With 200kg Load

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
I'm Online Chat Now

Multi Mast Aluminium Work Platform , 14m One Man Lift With 200kg Load

China Multi Mast Aluminium Work Platform , 14m One Man Lift With 200kg Load supplier
Multi Mast Aluminium Work Platform , 14m One Man Lift With 200kg Load supplier Multi Mast Aluminium Work Platform , 14m One Man Lift With 200kg Load supplier

Large Image :  Multi Mast Aluminium Work Platform , 14m One Man Lift With 200kg Load

Product Details:

Place of Origin: CHINA
Brand Name: SIVGE
Certification: CE
Model Number: GTWB14-4214

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: steel pallet or plywood case
Delivery Time: 30-50 work days
Payment Terms: D/P, L/C, T/T
Supply Ability: 30 units per month
Contact Now
Detailed Product Description
Product Name: Elevated Work Platforms Platform Height: 14m
Capacity: 200kg Move Method: Powered Self-propeller
Material: Aluminum Alloy Color: According To Your Request

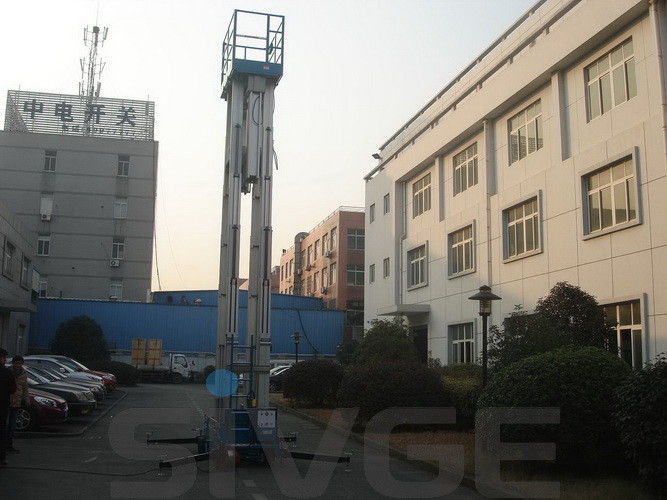

14m aluminum alloy multi mast Aluminum Work Platform / one man lift with 200kg load





 Application:



The one person lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc. Operation is easy. There are 2 sets control system installed on the one person lift, 1 control box below, and 1 control panel on safe rail that can be operated on man lift.

Safety:



1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the one person lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the one person lift are passed 1.2 times loading test before leaving factory.



Specification

of 14m aluminum alloy multi mast Aluminum Work Platform / one man lift with 200kg load



Brand SIVGE
Model GTWY14-4214
Max. Platform Height 14m
Max. Working Height 16m
Loading Capacity 200kg
Number Of Person Allowed 1
Platform Dimension (mm) 1480*860
Outrigger Footprint (mm) 3350*3000
Power Supply AC220V/50Hz
Power Input(kw) AC:0.75/1.5kw
Move method motor-propelled
Stowed Dimension (mm) 2360*1250*1920
Machine Weight (kg) About 1950





If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.





Packaging & Shipping
  • Steel pallet with anti-rust covers
  • Open top container is in need
  • Delivery time is usually 45 days according to order qty. and models

​Our Services:



1) We can design the customerized one person lift as per your requirement.

2) The most suitable one person lift will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.
6) One year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
