Stationary Aerial Scissor Working Platform 1150mm Lifting Height With Large Capacity

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
"Its really a good handy machine working nicely. " The machine I am using in my mall, there are three four people came and see it in operation as well I expalin the machine usage and importance, may be they will contact you or me in future, I will let you know. -----Technical manager of Lucky One Mall in Pakistan.

—— Ehtesham Hussain

I'm Online Chat Now

Stationary Aerial Scissor Working Platform 1150mm Lifting Height With Large Capacity

China Stationary Aerial Scissor Working Platform 1150mm Lifting Height With Large Capacity supplier

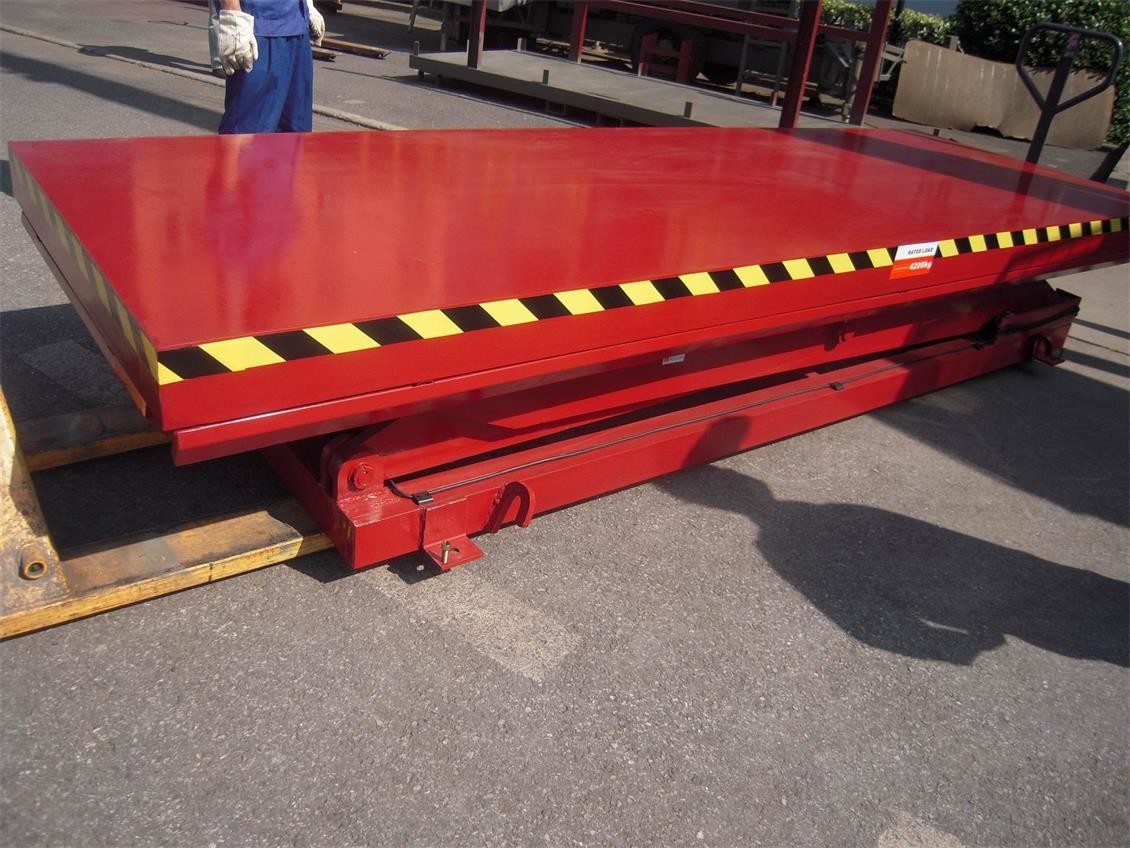

Large Image :  Stationary Aerial Scissor Working Platform 1150mm Lifting Height With Large Capacity

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: ISO9001/ISO14001
Model Number: GTJG2-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard export package
Delivery Time: within 60 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 40 units per month
Contact Now
Detailed Product Description
Product: Scissor Lift Platform Lifting Height: 1150mm
Load Capacity: 4200kg Platform Size: 3600*1200mm
Power Source: AC380V 3 Phase Power Input: 3Kw





1150mm lifting height stationary aerial scissor working platform with large capacity



Product advantages:



Hydraulic lifting system, the lift platform could stop at the accurate loaction point.

Smooth working condition,high load capacity, safe and reliable.

The overload protection devices are available and meanwhile the hydraulic lift system has the anti-drop function when any failure happens.
Power Supply is from local power sources.


Applications:It is drived by the electric and hydraulic system, It is installed in the pit or the ground floor to convey the goods from one floor to another and convey the goods from one working level to another. The control panels are available at the designated floors.



1150mm lifting height stationary aerial scissor working platform with large capacity



The lifting height are accurate and it work smoothly.



Product name stationary aerial scissor lift
Model GTJG2-1
Lifting height  1150mm
lifting time   less than 60 seconds
capacity  4200kg
platform size 3600*1200mm
power source  3 phase AC380v/50hz
power input  3Kw
stowed dimension  3600×1200×570mm





After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely.

SIVGE regards product safety as basic point of connecting to users.


1)SIVGE firmly adheres to domestic and international standards in the process of designing, manufacturing and transporting; the strength of the parts and the stability of the whole machine must undergone strict calculation and experimental verification.
2)All products are tested by the national authoritative testing institutions.
3)The production process, inspection and parts purchasing are fully in accordance with quality assurance system.
