Home ProductsOne Man Lift

Mobile Elevating Working Platform , 8 Meter Working Height Hydraulic Aerial Lift

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
"Its really a good handy machine working nicely. " The machine I am using in my mall, there are three four people came and see it in operation as well I expalin the machine usage and importance, may be they will contact you or me in future, I will let you know. -----Technical manager of Lucky One Mall in Pakistan.

—— Ehtesham Hussain

I'm Online Chat Now

Mobile Elevating Working Platform , 8 Meter Working Height Hydraulic Aerial Lift

China Mobile Elevating Working Platform , 8 Meter Working Height Hydraulic Aerial Lift supplier
Mobile Elevating Working Platform , 8 Meter Working Height Hydraulic Aerial Lift supplier Mobile Elevating Working Platform , 8 Meter Working Height Hydraulic Aerial Lift supplier

Large Image :  Mobile Elevating Working Platform , 8 Meter Working Height Hydraulic Aerial Lift

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWY6-1006G

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: 10 units per 20GP with steel pallets; plywood case for LCL
Delivery Time: 7-30 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Product Name: Hydraulic Work Platform Application: Outdoor Maintenance Work
Max. Platform Height: 6 Meter Max.working Height: 8 Meter
Rated Load/capacity: 136kg Stowed Dimension: 1330*730*1970mm
Standard: CE/TUV/SGS Move Method: Manual Push Around

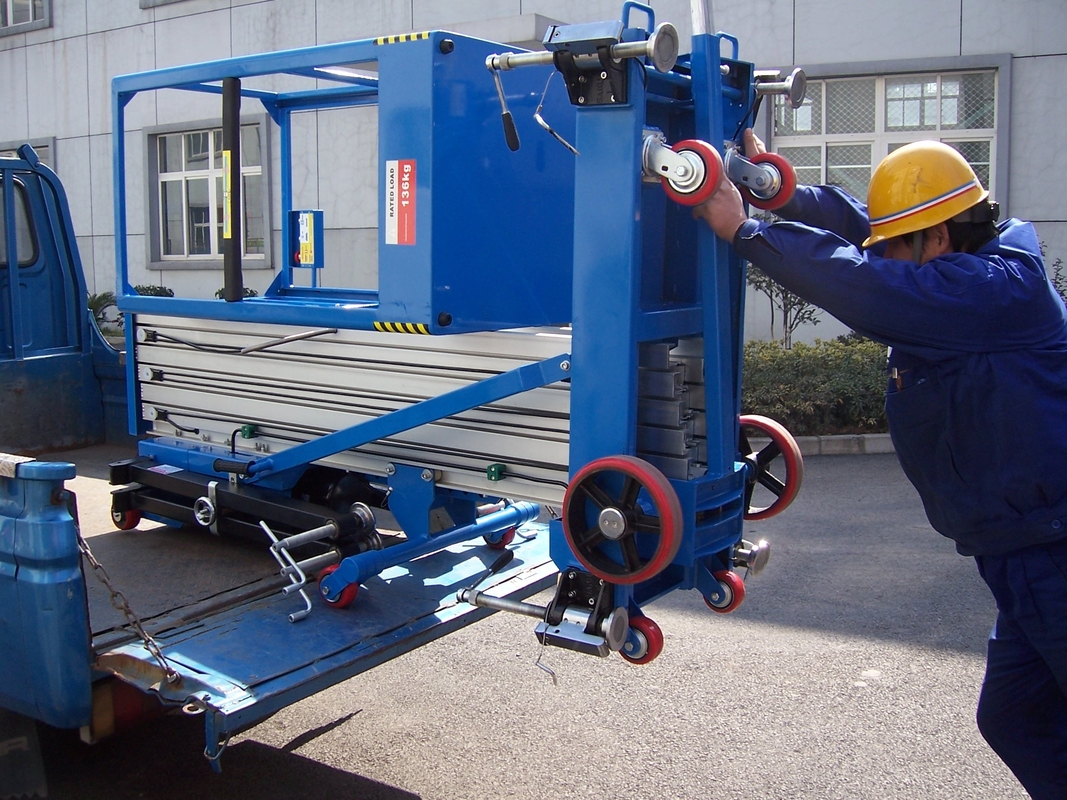

8 meter working height hydraulic one man lift with easy loading device for pickups





Places may in need of this kind of machine:



Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.



Occasions suitable to use this machine:



Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.



Specifications of

8 meter working height hydraulic one man lift with easy loading device for pickups

Brand SIVGE
Model GTWY6-1006G
Max platform height (m ) 6.3
Max working height (m ) 8
Rated load (kg) 136
Number of person allowed 1
Platform size (mm) 630*650
Max outrigger footprint (m) 2410*2000
Power supply (V) AC220V or DC12
Power input (kw) 0.75/0.7
Stowed dimension (mm) 1330*730*1970
Machine weight 370kg





Product features

  •  Dual controls operation
  •  Compact design with easy quick guardrail assemblage
  •  Double safety protection with leveling stabilizers and outriggers support
  •  Forklift pocket
  •  No-marking wheels
  •  Emergency stop buttons at both controls
  •  Emergency lowering device in case of power supply failure
  •  24V safe control voltage
  •  Overload limit
  •  Low maintenance requirements will save you time and money.
  •  Conform to EN 280:2013

Safe & Stable

User's safety is the basic concern point of SIVGE.

Professional & Innovative


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.



The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.



Our Services

Service is the extension of quality



With outstanding quality and loyal service to pursue the most satisfaction of customers.



Pre-sale Services:



· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.

· User jointly develop applied to industry-specific special purpose machinery.



Sale of services:



· In accordance with the order or user requirements, coordination of stocking or production cycle.

· Provide a detailed production schedule or project plan to the user.



After-sale Service:



· To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.

· To provide remote service support by phone and network freely.



Other Services:



· Services for product upgrade or remanufacturing.

· To provide more services about Aerial Work Machinery and related industries, such as design, sourcing, rental, etc.
