Hydraulic Work Platform Lift Self Propelled , Electric Work Platform For Warehouse

Basic Information
Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWZ5-1005
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: 10PC/20GP; plywood case for LCL
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 units per month
Detail Information
Name: Vertical Lift For Warehouse Max.working Height: 6.5meter
Rated Load: 136kg Number Of Persons Allowed: 1 Person
Size Of Platform: 650*630mm Stowed Dimension: 1430*800*1980mm
Move Method: Self-propelled
High Light:

Push Around Man Lift

,

Vertical Personnel Lift


Product Description





GTWZ5-1005 self-propelled single person aerial vertical mast lift / mobile work platform for for warehouse



Specifications of



GTWZ5-1005 self-propelled single person aerial vertical mast lift / mobile work platform for warehouse



Manufacturer SIVGE
Country of origin China
Model GTWZ5-1005
Max. Platform height 4.5 m
Max. Working height 6.5 m
Platform capacity 136kg
Platform dimension 630×650mm
Stowed height 1980mm
Stowed length 1430mm
Stowed width 800mm
Machine weight about 690kg
Power supply DC24V with rechargeable battery(2*12V 120Ah)
Power input 0.8kw
Traveling speed 2.5km/h when stored; 0.8km/h once lifted
Climb ability 20%
Ground clearance 80mm
Parking brake Loss of power brake
Standard CE (EN280)
Qty. for FCL 10PCS/20GP



CE certificated



Suitable for one person work on

Best quality and performance

Good reliable after-sales service

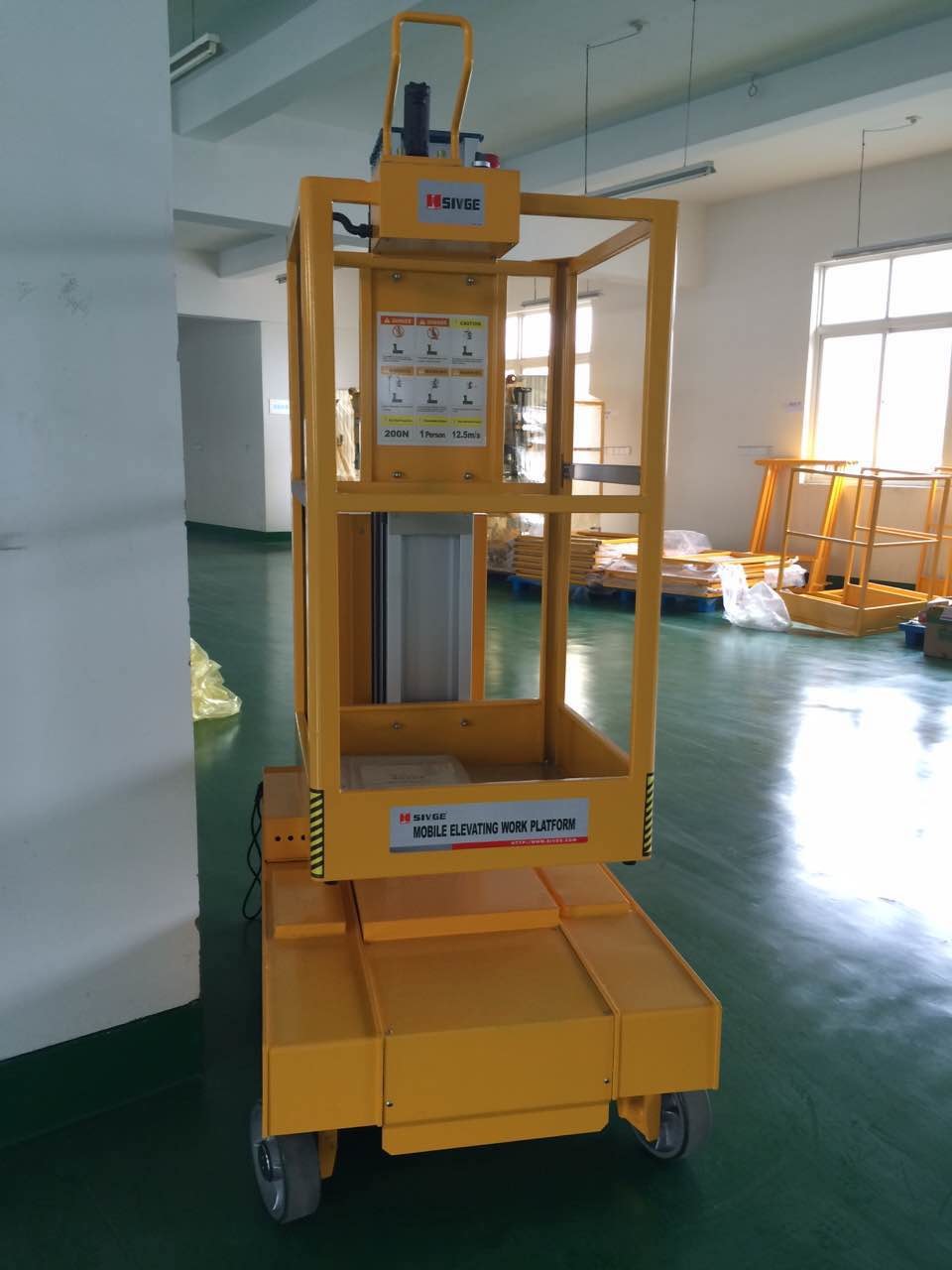

product photos



 Hydraulic Work Platform Lift Self Propelled , Electric Work Platform For Warehouse 0



STANDRAD FEATURES

  • Drivable at full height
  • One-hand proportional joystick
  • Dual controls operation (platform and ground)
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • 24V safe control voltage
  • Tilt audible alarm
  • Forklift pocket
  • Smooth, solid and non-marking tires
  • Maintenance-free battery, with battery charge indictor
  • Two drive speed(0.8km/h when lift up; 2.5km/h stored)

Packing & Shipping


LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-rust covers

Delivery time is usually 30 days according to order qty. and models.





After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely.
