Hydraulic Aluminum Work Platform For Outdoor Window Cleaning 12 Meter Working Height

Basic Information
Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWR10-2010
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: 10 units per 20GP with steel pallets; plywood case for LCL
Delivery Time: 7-30 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 units per month
Detail Information
Product Name: Mobile Elevated Platform Application: Window Cleaning
Max.working Height: 12 Meter Rated Load/capacity: 300kg
Number Of Persons Allowed: 2 Persons Stowed Dimension: 1390*880*2060mm
Move Method: Manual Push Around
High Light:

Mobile Elevated Platform

,

Hydraulic Lift Platform


Product Description

Hydraulic Aluminum work platform for outdoor window cleaning with 12 meter working height





Places may in need of this kind of machine:



hospitals,  shopping centers, Office buildings, theatres, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.



Occasions suitable to use this machine:



Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.





Specifications of

Hydraulic Aluminum work platform for outdoor window cleaning with 12 meter working height



Brand SIVGE
Model GTWR10-2010
Max. Platform Height 10m
Max. Working Height 12m
Loading Capacity 300kg
Number Of Person Allowed 2
Platform Dimension (mm) 1200*600
Outrigger Footprint (mm) 2340*2220
Power Supply AC220V or DC24V
Power Input(kw) AC:0.75kw or DC1.2kw
Move method Manual push type
Stowed Dimension (mm) 1390*880*2060
Machine Weight (kg) 680

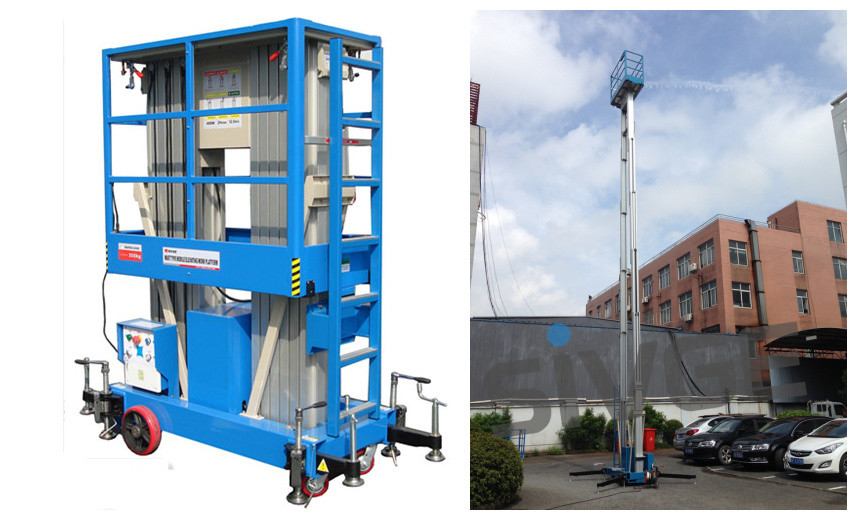

Hydraulic Aluminum Work Platform For Outdoor Window Cleaning 12 Meter Working Height 0



Product features

  •  Double safety protection with leveling stabilizers and outriggers support
  •  Dual controls operation
  • 24V safe control voltage
  • Overload limit
  •  Compact design with easy quick guardrail assemblage
  •  Emergency stop buttons at both controls
  •  Emergency lowering device in case of power supply failure
  •  Forklift pocket
  •  No-marking wheels
  •  Low maintenance requirements will save you time and money.
  •  Conform to EN 280:2013

Safe & Stable



User's safety is the basic concern point of SIVGE

SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.



Professional & Innovative



The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.
