Mobile Boom Lift With 136kg Load Capacity , 18 M Aluminum Alloy Hydraulic Cargo Lift

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
I'm Online Chat Now

Mobile Boom Lift With 136kg Load Capacity , 18 M Aluminum Alloy Hydraulic Cargo Lift

China Mobile Boom Lift With 136kg Load Capacity , 18 M Aluminum Alloy Hydraulic Cargo Lift supplier
Mobile Boom Lift With 136kg Load Capacity , 18 M Aluminum Alloy Hydraulic Cargo Lift supplier Mobile Boom Lift With 136kg Load Capacity , 18 M Aluminum Alloy Hydraulic Cargo Lift supplier

Large Image :  Mobile Boom Lift With 136kg Load Capacity , 18 M Aluminum Alloy Hydraulic Cargo Lift

Product Details:

Place of Origin: CHINA
Brand Name: SIVGE
Certification: CE
Model Number: GTWY18-4218

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: steel pallet with anti-rust covers
Delivery Time: 30-50 work days
Payment Terms: D/P, L/C, T/T, D/A
Supply Ability: 30 units per month
Contact Now
Detailed Product Description
Product Name: Vertical Mast Lift Quality Management System: ISO9001
Move Method: Powered Self-propeller Loading Capacity: 120kg
Material: Aluminum Alloy Max. Working Height: 20m

18 m aluminum alloy electric lift table / aerial work platform with 136kg load capacity





The product has passed the CE certification.

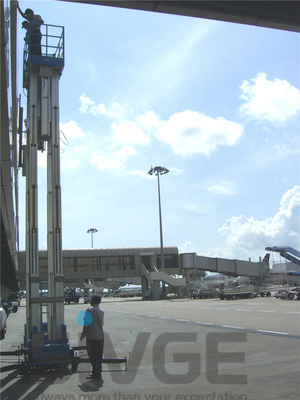

It adopts aluminum mast design which is light, flexible and reliable. It is for two persons working together in exhibition hall, warehouse, supermarket, airport, port, etc.
1)The product can be powered by DC or AC according to the order.
2)The external size is small after folded.
3)There are two controllers for ascending and descending.
4)It has unique upper platform and lower platform design.




Specification

of 18 m aluminum alloy vertical mast lift / aerial work platform with 136kg load



Brand

SIVGE

Model

GTWY18-4218

Max. Platform Height

18m

Max. Working Height

20m

Loading Capacity

136kg

Number Of Person Allowed

1

Platform Dimension (mm)

1480*860

Outrigger Footprint (mm)

3140*2930

Power Supply

AC220V/50Hz

Power Input(kw)

AC:0.75/1.5kw

Move method

motor-propelled

Stowed Dimension (mm)

2360*1250*2180

Machine Weight (kg)

About 2150



Optional function:

1. Move method can be manual push type or motor-propelled;

2. special specification or design service offered.



If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.





Packaging & Shipping
  • steel pallet with anti-rust covers
  • Open top container is in need
  • Delivery time is usually 45 days according to order qty. and models.
