Mobile Lift Platform With 10 Meter Platform , Aluminum Alloy Hydraulic Aerial Lift

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
I'm Online Chat Now

Mobile Lift Platform With 10 Meter Platform , Aluminum Alloy Hydraulic Aerial Lift

China Mobile Lift Platform With 10 Meter Platform , Aluminum Alloy Hydraulic Aerial Lift supplier
Mobile Lift Platform With 10 Meter Platform , Aluminum Alloy Hydraulic Aerial Lift supplier Mobile Lift Platform With 10 Meter Platform , Aluminum Alloy Hydraulic Aerial Lift supplier Mobile Lift Platform With 10 Meter Platform , Aluminum Alloy Hydraulic Aerial Lift supplier

Large Image :  Mobile Lift Platform With 10 Meter Platform , Aluminum Alloy Hydraulic Aerial Lift

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWY10-1010

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: plywood case for LCL; steel pallets for FCL
Delivery Time: 7-30 working days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Product Name: Mobile Work Platform Max.working Height: 12meter
Rated Load/capacity: 120kg Number Of Persons Allowed: 1 Person
Size Of Platform: 630*650mm Stowed Dimension: 1390*880*2140mm
Machine Weight: About 480kg





10 meter platform height aluminum alloy electric lift table / hydraulic aerial lift



mobile elevating work platform  widely used to workshop building site, hotel, airport, station, dock,

palaestra, shoping malls, factory, plant and so on.



Mainly used to installing, repairing and cleaning high aerial equipment,power equipments,overhead pipeline and so on. It is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial working more convenient and quick.





Specifications of

10 meter platform height aluminum alloy electric lift table / hydraulic aerial lift



Manufacturer SIVGE
Country of origin China
Model GTWY10-1010
Max. Working height 12m
Max. Platform height 10m
Platform capacity 120kg
Platform dimension L630×W650
Stored height 2140mm
Stored length 880mm
Stored width 1390mm
Machine weight about 480kg
Power supply

AC220V/ DC12V with rechargeable battery

Power input AC:0.75Kw or DC:0.7kw
Dual control Platform and base control
Standard EN280

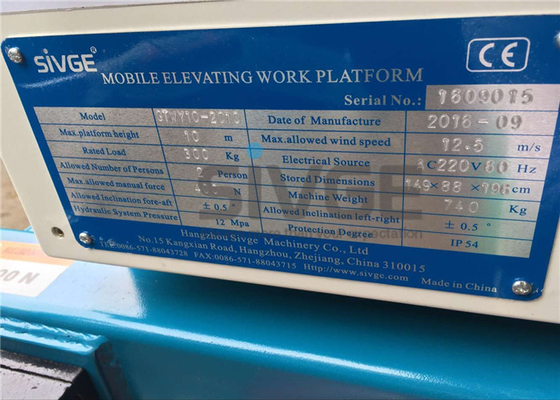

Photos as below;

Mobile Lift Platform With 10 Meter Platform , Aluminum Alloy Hydraulic Aerial Lift





Product features

  • Stable lifting and lowering:

The unit adopts seamless transmission between the lifting masts, thus minimizing the amount of sway after lifting.

  • Safe and reliable:

The unit is designed with leveling stabilizer which includes two types of support; one, the height-adjusting bolts for leveling and the other is the outriggers for preventing inclination. The bolts are rigidly fixed directly on the chassis whilst the outriggers enlarge the anti-inclination base support area, thus providing double protection of safety and stability.

  • Convenient:

As the lifting masts are made of aluminum, the unit is light and compact. It can easily access through standard doorways or narrow passages. In most cases, only one person is required to move the equipment.

  • Emergency:

Emergency stop buttons at both upper and lower control panels;Emergency release valve in this machine to lower the platform in the event of power cut-off or other reasons and the platform fails to descend using both the upper and lower controls.

  • Design and manufacture strictly according to European standard EN280 and with CE certificate.





Our Services

Service is the extension of quality



With outstanding quality and loyal service to pursue the most satisfaction of customers.



Pre-sale Services:



· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.

· User jointly develop applied to industry-specific special purpose machinery.



Sale of services:



· In accordance with the order or user requirements, coordination of stocking or production cycle.

· Provide a detailed production schedule or project plan to the user.



After-sale Service:



· To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.

· To provide remote service support by phone and network freely.



Other Services:



· Services for product upgrade or remanufacturing.

· To provide more services about Aerial Work Machinery and related industries, such as design, sourcing, rental, etc.





Packing &Shipping


LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-dust covers (10PCS/20GP)

Delivery time is usually 30 days according to order qty. and models.
