10 Meter Platform Height Self Propelled Work Platform For 2 Persons Aerial Work

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
"Its really a good handy machine working nicely. " The machine I am using in my mall, there are three four people came and see it in operation as well I expalin the machine usage and importance, may be they will contact you or me in future, I will let you know. -----Technical manager of Lucky One Mall in Pakistan.

—— Ehtesham Hussain

I'm Online Chat Now

10 Meter Platform Height Self Propelled Work Platform For 2 Persons Aerial Work

China 10 Meter Platform Height Self Propelled Work Platform For 2 Persons Aerial Work supplier
10 Meter Platform Height Self Propelled Work Platform For 2 Persons Aerial Work supplier 10 Meter Platform Height Self Propelled Work Platform For 2 Persons Aerial Work supplier

Large Image :  10 Meter Platform Height Self Propelled Work Platform For 2 Persons Aerial Work

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWR10-2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: plywood case for LCL; steel pallets for FCL
Delivery Time: 7-30 working days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Product Name: Aerial Work Platform Max.working Height: 12meter
Rated Load/capacity: 300kg Number Of Persons Allowed: 2 Persons
Size Of Platform: 1200*600mm Stowed Dimension: 1390*880*2060mm
Machine Weight: About 680kg





10 meter platform height hydraulic lift ladder / lift table for 2 persons aerial work



Places may in need of this kind of machine:



Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.



Occasions suitable to use this machine:



Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.





Specifications of

10 meter platform height hydraulic lift ladder / lift table for 2 persons aerial work



Manufacturer SIVGE
Country of origin China
Model GTWY10-2010
Max. Working height 12m
Max. Platform height 10m
Platform capacity 300kg
Platform dimension L1200×W600
Stored height 2060mm
Stored length 880mm
Stored width 1390mm
Machine weight about 680kg
Power supply

AC220V/ DC24V with rechargeable battery

Power input AC:0.75Kw or DC:1.2kw
Dual control Platform and base control
Standard EN280

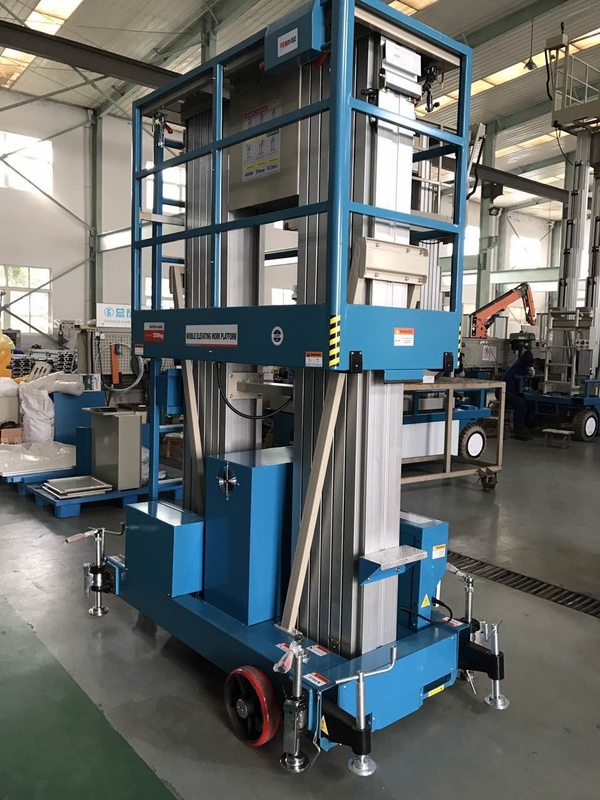

Photos as below;





10 Meter Platform Height Self Propelled Work Platform For 2 Persons Aerial Work



Forklift pocket



Product features

  • Stable lifting and lowering:

The unit adopts seamless transmission between the lifting masts, thus minimizing the amount of sway after lifting.

  • Safe and reliable:

The unit is designed with leveling stabilizer which includes two types of support; one, the height-adjusting bolts for leveling and the other is the outriggers for preventing inclination. The bolts are rigidly fixed directly on the chassis whilst the outriggers enlarge the anti-inclination base support area, thus providing double protection of safety and stability.

  • Convenient:

As the lifting masts are made of aluminum, the unit is light and compact. It can easily access through standard doorways or narrow passages. In most cases, only one person is required to move the equipment.

  • Emergency:

Emergency stop buttons at both upper and lower control panels;Emergency release valve in this machine to lower the platform in the event of power cut-off or other reasons and the platform fails to descend using both the upper and lower controls.

  • Design and manufacture strictly according to European standard EN280 and with CE certificate.





Our Services

Service is the extension of quality



With outstanding quality and loyal service to pursue the most satisfaction of customers.



Pre-sale Services:



· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.

· User jointly develop applied to industry-specific special purpose machinery.



Sale of services:



· In accordance with the order or user requirements, coordination of stocking or production cycle.

· Provide a detailed production schedule or project plan to the user.



After-sale Service:



· To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.

· To provide remote service support by phone and network freely.



Other Services:



· Services for product upgrade or remanufacturing.

· To provide more services about Aerial Work Machinery and related industries, such as design, sourcing, rental, etc.





Packing &Shipping


LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-dust covers (10PCS/20GP)

Delivery time is usually 30 days according to order qty. and models.
