Place of Origin: | CHINA |
---|---|
Brand Name: | SIVGE |
Certification: | ISO9001 |
Model Number: | GTHZ6-410670 /GTHZ8-5108 |
Minimum Order Quantity: | 1 unit |
Price: | USD 14000- 28000 / Units |
Packaging Details: | Standard |
Delivery Time: | within 30 working days |
Payment Terms: | T/T, L/C, D/P, D/A |
Supply Ability: | 30 units per month |
Product Name: | Aerial Work Platform | Platform Height: | 6 -10 M |
---|---|---|---|
Capacity: | 200Kg | Feature: | 360 Degree Rotation |
Type: | Vertical Mast Boom Lift | Color: | Customized |
Application: | Commercial Center / Shopping Mall | ||
High Light: | Aerial Platform Lift,Hydraulic Work Platform,Aerial Work Platform Boom Lift |
Specification

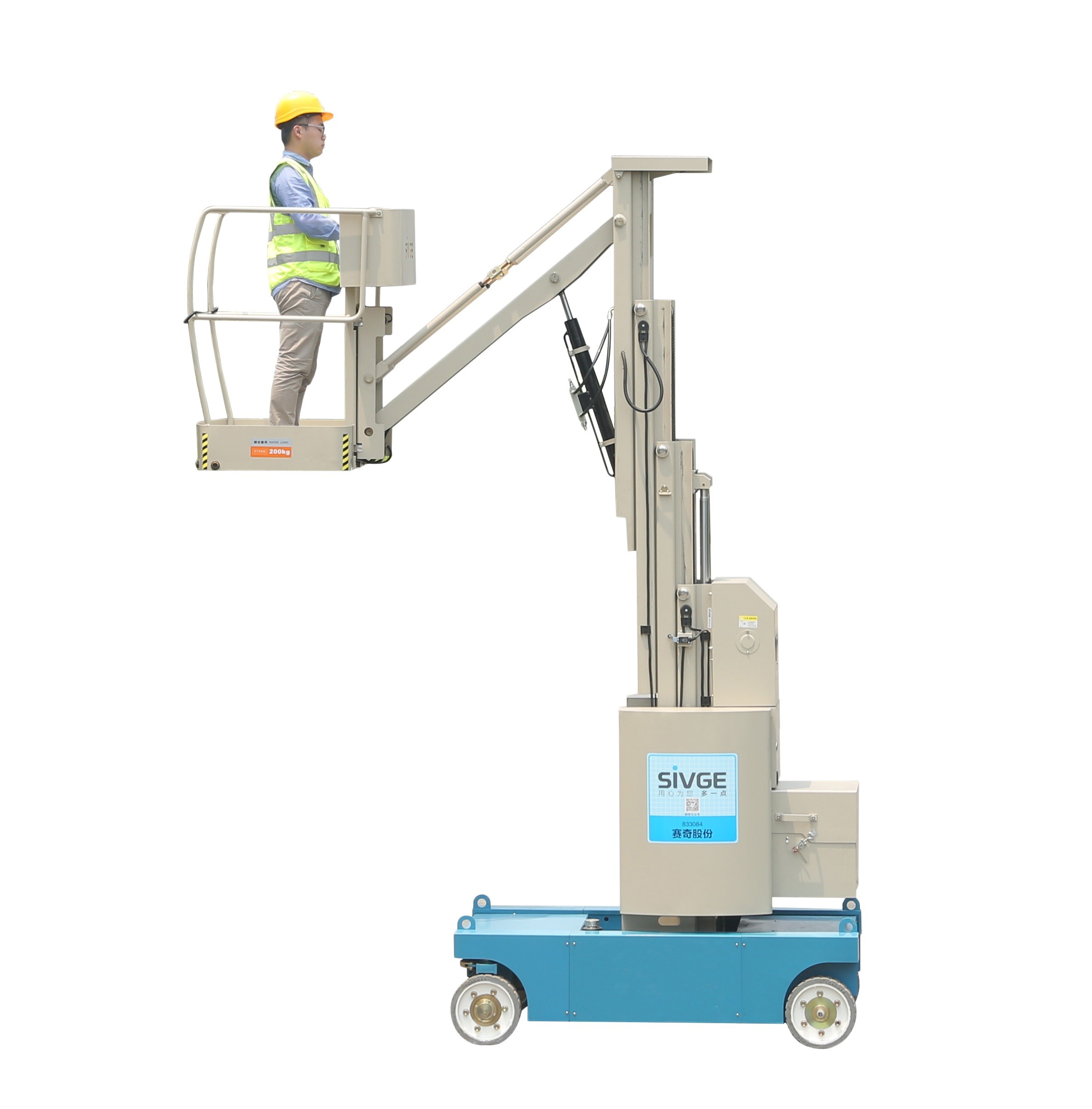

360 degree rotation Self Propelled Aerial Work Platform
Series | GTHZ6-410670 /GTHZ8-5108 |
Model-code | GTHZ6-410670 /GTHZ8-5108 |
Platform height(m) | 6-10 m |
Working height(m) | 8-10 m |
Outreach | 3m |
Platform rotation | 360° |
Capacity(kg)/occupants |
125Kg/1 for outdoor,200Kg/1 for indoor |
Platform size(mm) | 750*720mm |
Stowed length(mm) | 2700mm |
Stowed width(mm) | 990mm |
Stowed height(mm) | 1965mm |
Machine weight(kg) | 1750Kg |
Moving methods | Drivable when fully lifted up |
Outside/inside turning radius | 1.9/0m |
Travel speed(Stowed)(km/h) | 3.0Km/h |
Travel speed (Lift)(km/h) | 0.8Km/h |
Climb ability | 15% |
Ground Clearance | 66mm |
Wheelbase | 1445mm |
Front wheel | Steering wheel 12inch |
Rear wheel | Driving wheel 12inch |
Power supply | DC 24V |
Power input(kw) | 1.5kw |
Battery | 4*12V/260Ah |
Max. allowed wind speed | 12.5m/s for outdoor, 4.5m/s for indoor, |
Rated oil pressure | ≤16MPa |
If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.
Product Description
Occasions suitable to use this machine:
Places may in need of this kind of machine:
Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.
Using purpose:
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
Product standard features
Drive speed interlock
Tilt level sensor with audible alarm
Overload limit
Compact size with easy quick guardrail assemblage system
Low maintenance requirements will save you time and money.
3 meter Outreach
360 degree platform rotation
Emergency stop buttons at both controls
Emergency lowering device in case of power supply failure
Battery charger indictor
Forklift pocket
Drivable at full height
One hand proportional joystick
Using purpose:
Safe & Reliable
Professional & Innovative
SIVGE technical team has research and development the aerial work platforms for 20 years, especially mast platforms. We obtain dozens of patents and apply these patents to our machines.
We focus on portable aerial work platform, lifting mechanism synchronization, machine stability, operator comfort, and control of advanced, outriggers rationality, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.
Sivge has build the national standards in aerial work platform fields, establishde High-tech R&D center. build the National key scientific and technological support projects industrial base.
LCL: plywood case with steel pallet
FCL: steel pallet with anti-dust cover
Delivery time is usually 30 days after order comfirmation.
