| Place of Origin: | China |
|---|---|
| Brand Name: | SIVGE |
| Certification: | CE/ISO9001/ISO14001/OHSAS18001 |
| Model Number: | GTWR8-2008 / GTWR10-2010 |
| Minimum Order Quantity: | 1 unit |
| Price: | USD 4000- 8000 / Units |
| Packaging Details: | Standard |
| Delivery Time: | 7-30 working days |
| Payment Terms: | D/P, L/C, T/T |
| Supply Ability: | 1000 units per month |

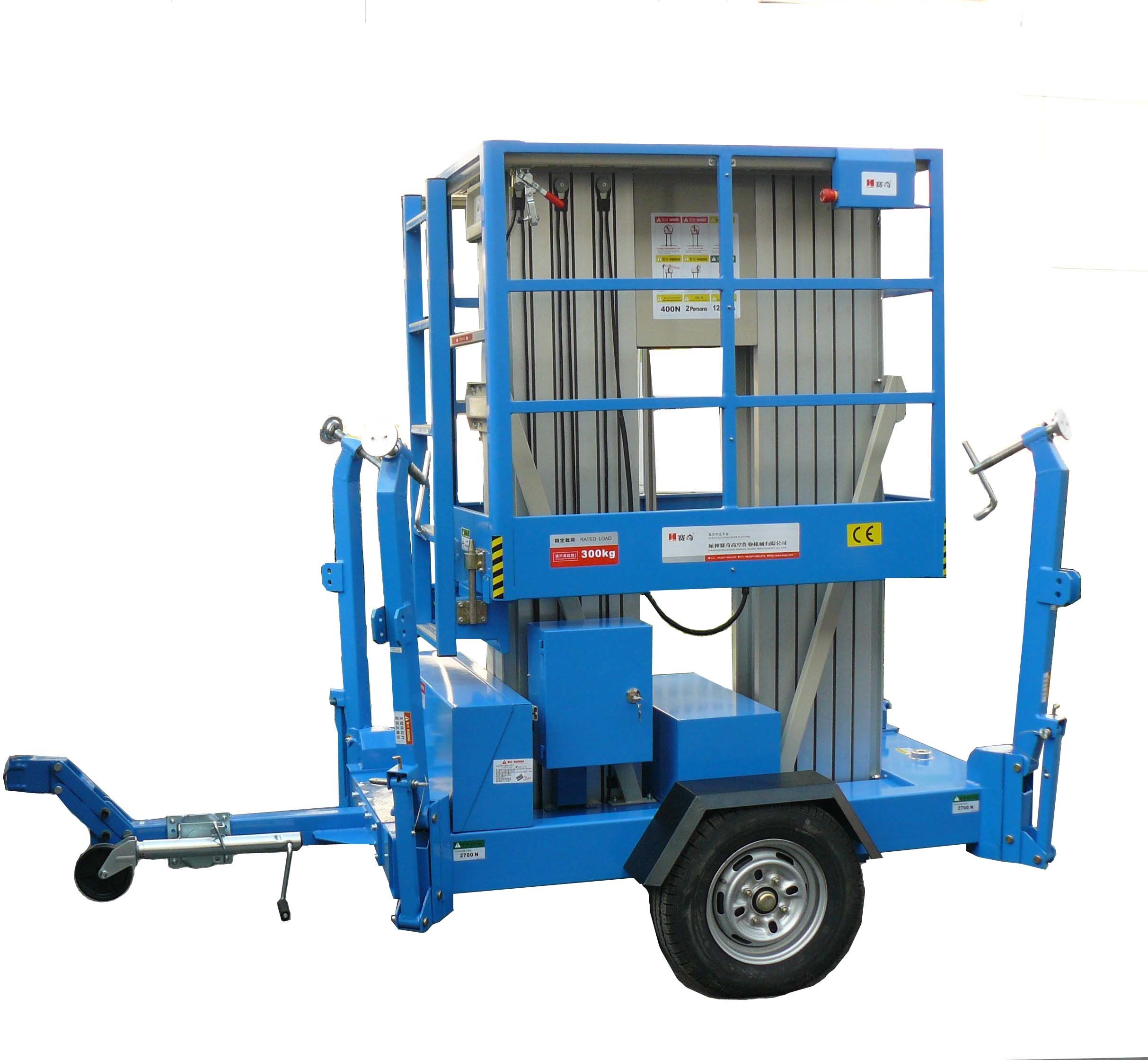

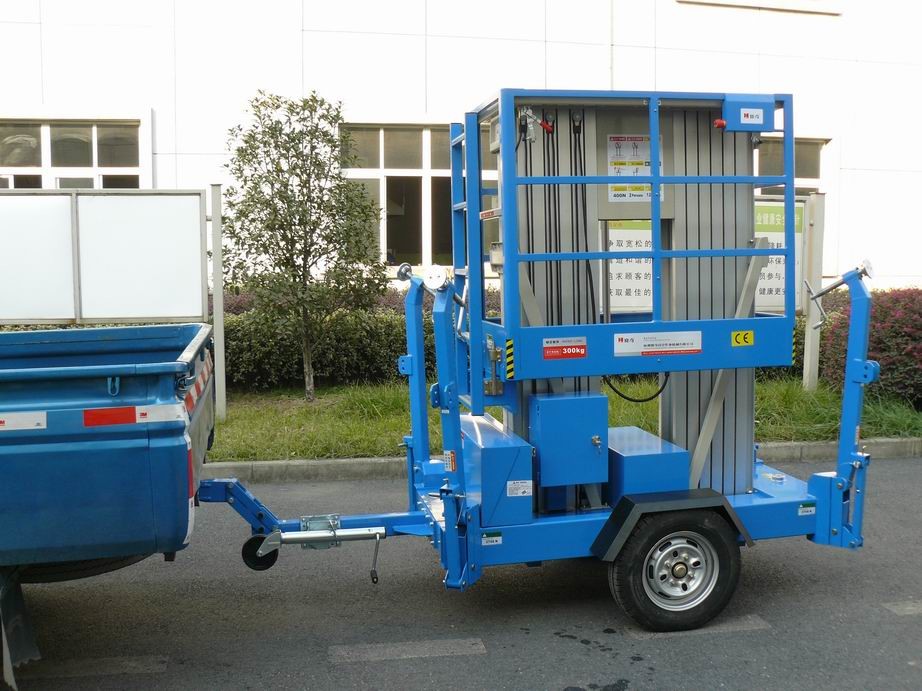

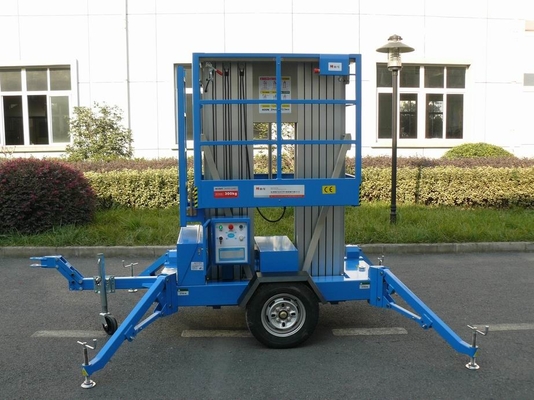

| Name: | Trailer Mounted Aerial Work Platform | Max.working Height: | 8- 12 Meter |
|---|---|---|---|
| Rated Load/capacity: | 300kg | Size Of Platform: | 1200*600mm |
| Color: | Customized | Max. Platform Height: | 8- 12 Meter |
| High Light: | 12m trailer boom lift,12m towable scissor lift,300kg trailer boom lift |
||
| Brand | SIVGE | SIVGE |
| Model | GTWT8-1008 | GTWT10-2010 |
| Max. Platform Height | 8m | 10m |
| Max. Working Height | 10m | 12m |
| Loading Capacity | 136kg | 200kg |
| Number Of Person Allowed | 1 | 2 |
| Platform Dimension (mm) | 630*650 | 1200*600 |
| Outrigger Footprint (mm) | 2430*2280 | 2430*2280 |
| Power Supply | Battery 12V | Battery 24V |
| Power Input(kw) | DC:0.8kw | DC:1.2kw |
| Move method | trailer type | trailer type |
| Stowed Dimension (mm) | 2200*1100*2200 | 2590*1100*2230 |
| Machine Weight (kg) | 550 | 870 |
| Dual control | Platform and base control | Platform and base control |
Application:
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
Working Condition:
Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.
Features:
l Suitable for one person to work upraised
l Dual controls operation
l Emergency stop buttons at both controls
l Emergency lowering device in case of power supply future
l Overload limit
l Double safety protection with leveling stabilizers and outriggers support
l Forklift pocket
l No-marking wheels
If the above specification not suitable for your working condition, please contact us for further customize service.
Professional & Innovative
SIVGE has committed to research & development in aerial work platforms more than 20 years. We obtain dozens of patents and apply these patents in our products.these patents all related to portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.
If the above specification cannot fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.
Q1:What is your lead time for regular order?
A: Within 10- 30 working days after we receive the order. Different products with different lead time.
Q2:What payment method you accept?
A: Offline: T/T, L/C; Online: Alibaba Trade Assurance.
We have online and offline, two ways.
Online: start order through Alibaba trade assurance, make payment to allocated account, we arrange delivery
Offline: we send Proforma invoice to you directly, make payment to our account, we arrange delivery .
Q3:What's your Price Terms?
A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.
Q4:Do you offer Customize service?
A:Yes, we can provide customized products, both OEM and ODM are acceptable.
Q5:What is your warranty period?
A:It depends on different kinds of parts, usually 12 months, Offer free parts for replacement.
Q6:How to proceed an order?
A: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you suggestions and quotations according to your working condition.
Thirdly, you confirm the quotation and places deposit.
Then we arrange the production. Once we finish the production, we will arrange the shipment according the price term
