Blue Aluminum Alloy Mobile Elevating Work Platform 20 M For Window Cleaning

Basic Information
Place of Origin: CHINA
Brand Name: SIVGE
Certification: CE
Model Number: GTWY20-4220
Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: steel pallet with anti-rust covers
Delivery Time: 30-50 work days
Supply Ability: 30 units per month
Detail Information
Name: Hydraulic Platform Lift Quality Management System: ISO9001
Management System: ISO14001 OHSAS18001 Standards: EN280:2013
Move Method: Powered Self-propeller Loading Capacity: 120kg
Material: Aluminum Alloy Color: Blue
High Light:

Aerial Platform Lift

,

Hydraulic Work Platform


Product Description

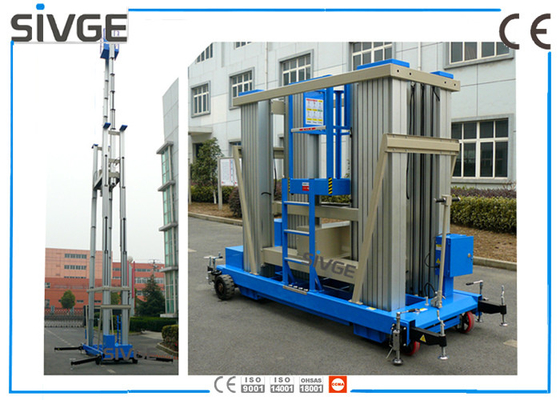

20 m aluminum alloy blue vertical mast lift / mobile elevating work platform for window cleaning





1. CE certificated.
2. Suitable for one persons work on
3. Best quality and performance
4. Good reliable after-sales service



Product Description



Specification

of 20 m aluminum alloy blue aerial work platform / mobile elevating work platform for window cleaning



Brand SIVGE
Model GTWY20-4220
Max. Platform Height 20m
Max. Working Height 22m
Loading Capacity 120kg
Number Of Person Allowed 1
Platform Dimension (mm) 700* 700
Outrigger Footprint (mm) 4100*3410
Power Supply AC220V/50Hz
Power Input(kw) 1.5/1.5kw
Move method powered self-propeller
Stowed Dimension (mm) 3120*1660*2650
Machine Weight (kg) About 2450





If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.



Multi-mast Mobile Elevating Work Platforms



*Suitable for 1 person to work upraised.

*Maximum working height available: 16m, 18m, 20m, 22m, 24m

*Power supply available:

1. Single phase AC220V/50Hz

2. Uninterrupted Power Supply



STANDARD FEATURES

  • Dual controls operation
  • Emergency stop buttons at both controls
  • Intelligent anti-tilt: The controller checks the slope angle of chassis automatically.
  • Double emergency lowering devices in case of power supply failure
  • 24V safe control voltage
  • Double safety protection with leveling stabilizers and outriggers support
  • Forklift pocket
  • Low maintenance requirements will save you time and money.
  • Traveling method: powered self-propeller
Packaging & Shipping
  • steel pallet with anti-rust covers
  • Open top container is in need
  • Delivery time is usually 45 days according to order qty. and models.
