Four Mast Electric Ladder Lift , 300KG Load 12m Mobile Elevated Platform

Basic Information
Place of Origin: CHINA
Brand Name: SIVGE
Certification: CE SGS
Model Number: GTWZ12-4012
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: wooden case or steel pallet
Delivery Time: 7-50 work days
Payment Terms: D/P, T/T, L/C
Supply Ability: 30 units per month
Detail Information
Product Name: Mobile Aerial Work Platform Certificate: ISO9001;ISO14001 OHSAS18001
Max. Working Height: 14.0m Loading Capacity: 300kg
Material: Aluminum Alloy Color: As Photos
High Light:

Aerial Platform Lift

,

Hydraulic Work Platform


Product Description

12m Four Mast Self-propelled hydraulic lift / aerial working platform with 300KG load


Product Description


Specification
of 12m Four Mast Self-propelled hydraulic lift / aerial working platform with 300KG load



Brand SIVGE
Model GTWZ12-4012
Max platform height (m ) 12
Max working height (m) 14
Rated load (kg) 300
Number of person allowed 1
Platform size (mm) 1760*860
Travle speed(km/h) Lift:0.8 Stored:2.5
Climb ability 25%
Power supply (V) DC24/48
Power input (kw) 2.2/3
Stowed dimension (mm) 2430*1150*2380
Machine weight (for reference) 2650kg



Optional funtion: horizontal extension platform for 800mm at one side;
                                 rated load for extenson: 100kg


Product standard features

  • Drivable at full height

  • One hand proportional joystick

  • AC inverter motor drive

  • Drive speed interlock

  • Tilt level sensor with audible alarm

  • Overload limit

  • Emergency stop buttons at both controls

  • Emergency lowering device in case of power supply failure

  • Battery charger indictor

  • Forklift pocket

  • Compact size with easy quick guardrail assemblage system

  • Low maintenance requirements will save you time and money.


If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.

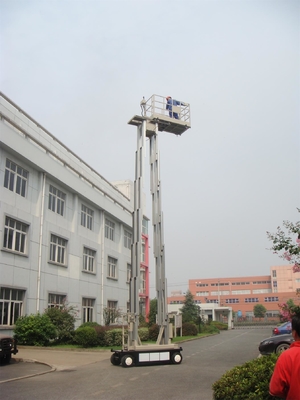

Product photos

Four Mast Electric Ladder Lift , 300KG Load 12m Mobile Elevated Platform 0


Occasions suitable to use this machine:

Places may in need of this kind of machine:
Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.

Using purpose:
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.


Packaging & Shipping



1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box.
Other Equipment will be packed by Color-Stripes Plastic Cloth.

2.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack
all of them. The motor, gear box or other easily damaged parts, we will put them into box.
We have a professional shipping department, they will try them best to save your container quantity.



After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely.
