|Product Name:||Hydraulic Lift Platform||Certificate:||CE;ISO9001;ISO14001 OHSAS18001|
|Max. Working Height:||10.0m||Loading Capacity:||400kg|
|Material:||Aluminum Alloy||Color:||According To Your Request|
Aerial Platform Lift,
Hydraulic Work Platform
Occasions suitable to use this machine:
Places may in need of this kind of machine:
Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.

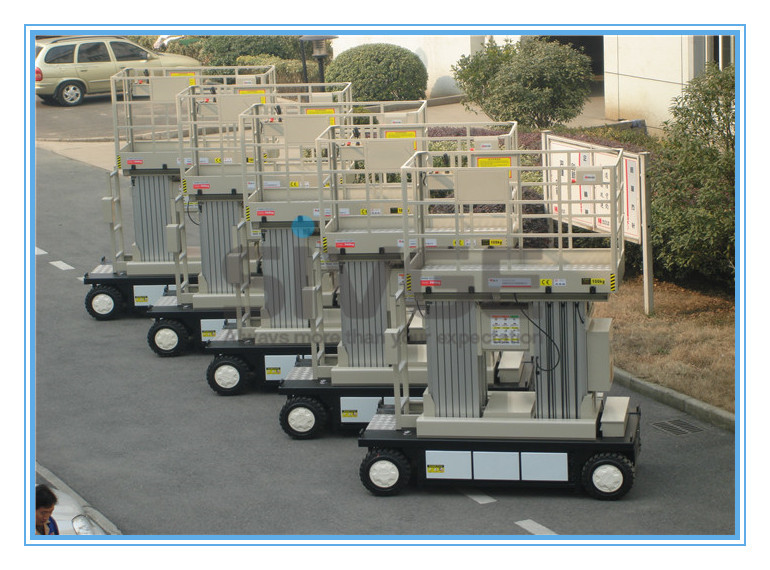

of 8m self propelled aerial work platform / hydraulic Aluminum ladder for indoor outdoor use
|Max. Platform Height||8m|
|Max. Working Height (m)||10m|
|Loading Capacity (kg)||400|
|Number Of Person Allowed||2 persons|
|Platform Dimension (mm)||1760×860|
|Horizontal Extension (mm)||800 (optional)|
|Rated load for extension (kg)||100(optional)|
For Lifting (kw): 2.2
For traveling (kw): 3.0
|Traveling speed (km/h)||
Stored state: 2.5
Lifted state: 0.8
|Min. swerve radius (m)||4.0|
|Stowed Dimension (mm)||L×W×H: 2430×1150×1980|
|Machine weight about(kg)||2400|
Product standard features
Drivable at full height
One hand proportional joystick
AC inverter motor drive
Drive speed interlock
Tilt level sensor with audible alarm
Emergency stop buttons at both controls
Emergency lowering device in case of power supply failure
Battery charger indictor
Compact size with easy quick guardrail assemblage system
Low maintenance requirements will save you time and money.
If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.
LCL: plywood case with steel pallet at bottom
FCL: steel pallet with anti-rust covers
20GP container for 4 set
Delivery time is usually 40 days according to order qty. and models.
