Trailer Mounted Vertical Single Mast Lift 8 Meter Mobile Elevating Working Platform

Basic Information
Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWY8-1008T
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: steel pallets for FCL, 7PCS/20GP; plywood case for LCL
Delivery Time: 15-45 working days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 80 units per month
Detail Information
Product Name: Hydraulic Aerial Lift Application: Outdoor Maintenance Work
Max.working Height: 10 Meter Rated Load/capacity: 136kg
Number Of Persons Allowed: 1 Person Stowed Dimension: 2200*1100*2200mm
High Light:

Personnel Lift Platform

,

One Person Lift


Product Description





8 meter hydraulic aluminium alloy vertical single mast lift / trailer mounted lift for one person



Specifications of

8 meter hydraulic aluminium alloy vertical single mast lift / trailer mounted lift for one person



Brand SIVGE
Model GTWY8-1008T
Max platform height (m ) 8
Max working height (m ) 10
Rated load (kg) 136
Number of person allowed 1
Platform size (mm) 630*650
Max outrigger footprint (m) 2430*2280
Power supply (V) DC12V
Power input (kw) 0.7
Stowed dimension (mm) 2200*1100*2200
Machine weight (for reference) 520kg


Occasions suitable to use this machine:



Using purpose:

Business lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.





Places may in need of this kind of machine:



Street, business/convention center, airports, auto stations and highway toll station etc.

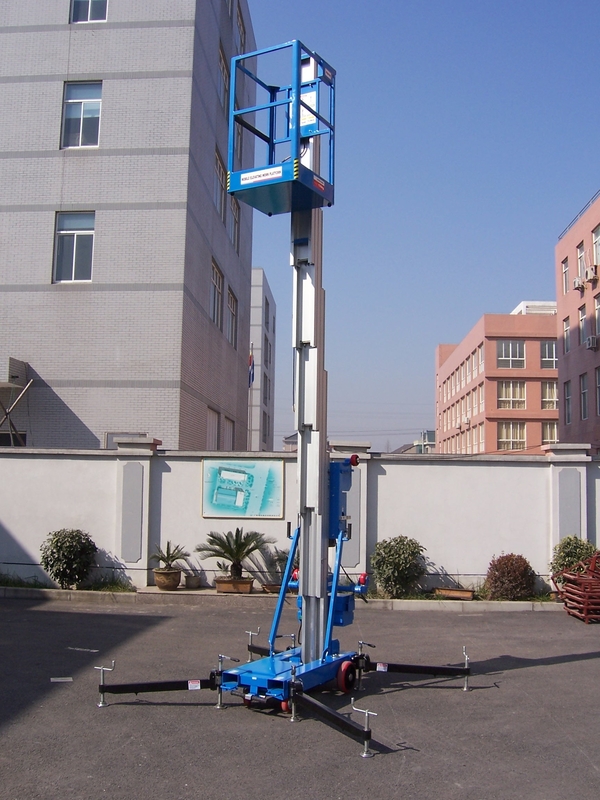

Trailer Mounted Vertical Single Mast Lift 8 Meter Mobile Elevating Working Platform 0



Product features

  •  Dual controls operation
  •  Emergency lowering device in case of power supply failure
  •  24V safe control voltage
  •  Overload limit
  •  Double safety protection with leveling stabilizers and outriggers support
  •  Hoist points at four corners
  •  Compact design with easy quick guardrail assemblage
  •  Emergency stop buttons at both controls
  •  No-marking wheels
  •  Low maintenance requirements will save you time and money.
  •  Conform to EN 280:2013

Safe & Stable

User's safety is the basic concern point of SIVGE.

Professional & Innovative


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.



The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.





Our Services

Service is the extension of quality



With outstanding quality and loyal service to pursue the most satisfaction of customers.



Pre-sale Services:



· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.

· User jointly develop applied to industry-specific special purpose machinery.



Sale of services:



· In accordance with the order or user requirements, coordination of stocking or production cycle.

· Provide a detailed production schedule or project plan to the user.



After-sale Service:



· To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.

· To provide remote service support by phone and network freely.



Other Services:



· Services for product upgrade or remanufacturing.

· To provide more services about Aerial Work Machinery and related industries, such as design, sourcing, rental, etc.

Trailer Mounted Vertical Single Mast Lift 8 Meter Mobile Elevating Working Platform 1
