| Place of Origin: | China |
|---|---|
| Brand Name: | SIVGE |
| Certification: | ISO9001 |
| Model Number: | SJG1-1.5 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 10 units per month |
| Product: | Aerial Scissor Lift | Lifting Height: | 1500mm |
|---|---|---|---|
| Load Capacity: | 1000kg | Table Size: | 1400mm*1200mm |
| Power Source: | AC380V 3 Phase | Power Input: | 3Kw |
| High Light: | Indoor Scissor Lift,Push Around Scissor Lift |
||

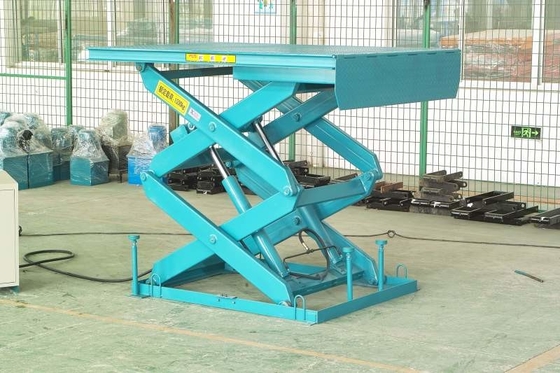

1500mm lifting height stationary aerial scissor lift with 1000kg capacity
Product advantages:
Hydraulic lifting system, the lift platform could stop at the accurate loaction point.
Smooth working condition,high load capacity, safe and reliable.
The overload protection devices are available and meanwhile the hydraulic lift system has the anti-drop function when any failure happens.
Power Supply is from local power sources.
Applications:
It is drived by the electric and hydraulic system, It is installed in the pit or the ground floor to convey the goods from one floor to another and convey the goods from one working level to another.
The control panels are available at the designated position.
The lifting height are accurate and it work smoothly.
Main specification as below:
| Model: | SJG1-1.5 |
| Rated load: | 1000kg |
| Lifting stoke | 1500mm |
| Stowed height | 380mm |
| Platform size | 1400mm*1200mm |
| Hydraulic cylinder | Ø63*2 |
| Motor input | 3KW |
| Powr source | 3 phase/AC380/50Hz |
| Lifting/lowering time | 15 seconds |
| Hydraulic pump station | Inside or outside the machine |
| according to working site condition |
