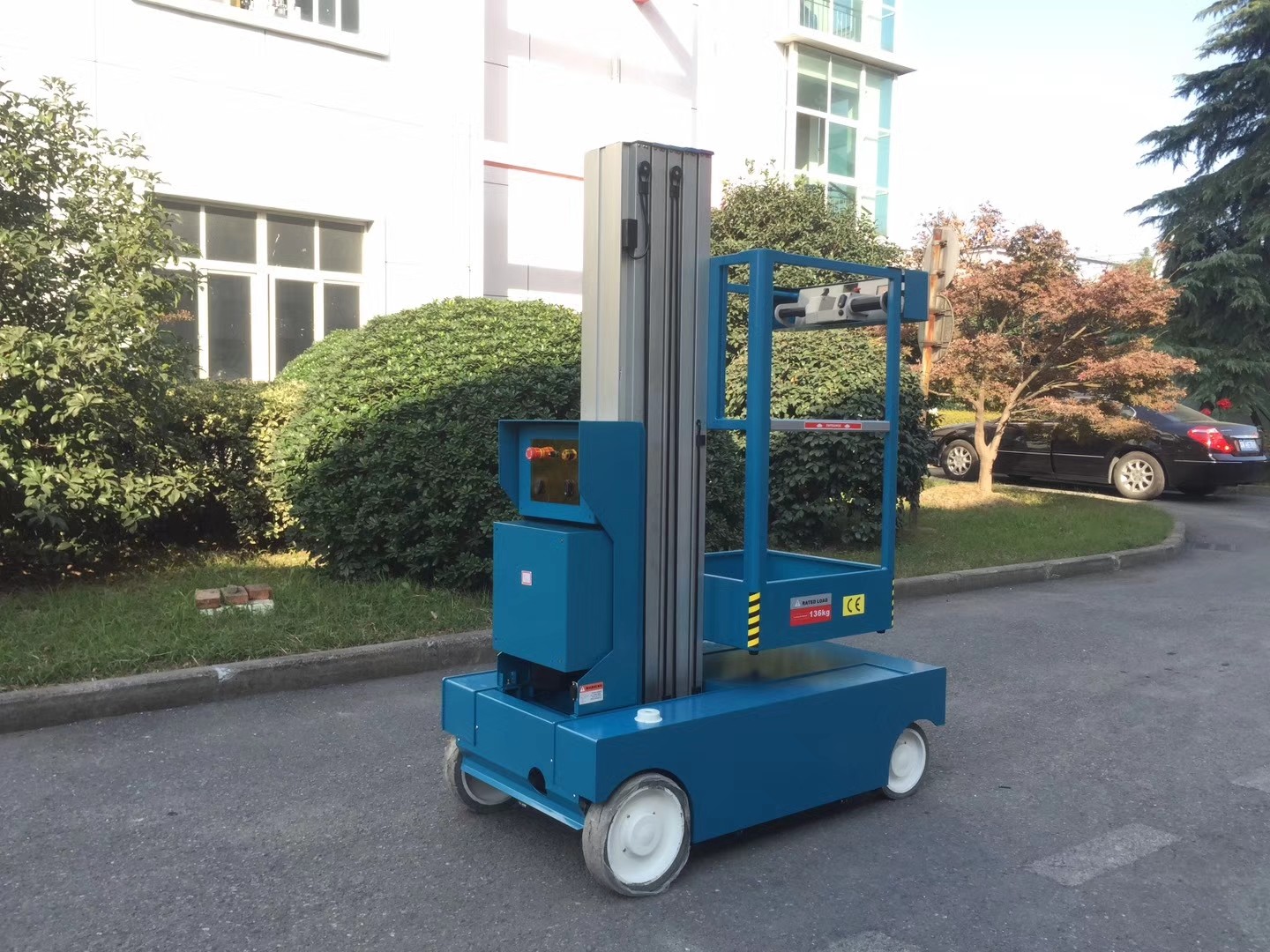

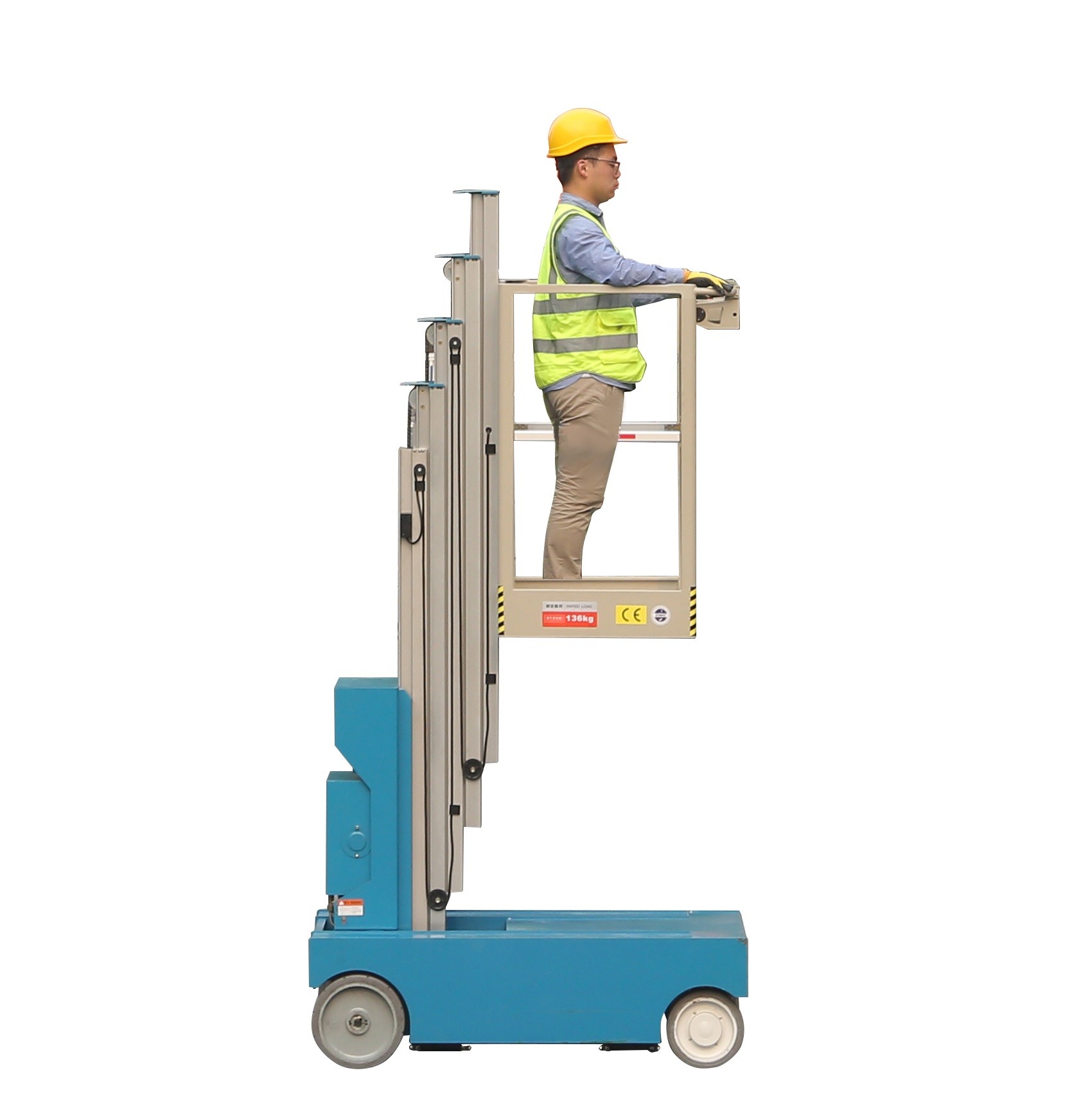

4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
I'm Online Chat Now

4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform

China 4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform supplier
4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform supplier 4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform supplier 4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform supplier 4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform supplier 4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform supplier 4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform supplier

Large Image :  4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWZ3-1003 /GTWZ5-1005/GTWZ6-1006

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 4000- 9000 / Units
Packaging Details: 10PC/20GP; plywood case for LCL
Delivery Time: 7-20 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 2000 units per month
Contact Now
Detailed Product Description
Product Name: Single Mast Aerial Work Platform Max.platform Height: 3 / 5 / 6 Meter
Capacity: 160kg Stowed Dimension: 1430*800*1980mm
Move Method: Self-propelled Color: Customized



4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform



Z10 self-propelled single mast 3-6m.pdf





CE certificated

Suitable for one person work on

Best quality and performance

Good reliable after-sales service





Single Person Aerial Work Platform For Supermarket



Manufacturer SIVGE
Country of origin China
Model
Max. Platform height 3/ 5/6m
Max. Working height 5/7/8 m
Platform capacity 160kg
Platform dimension 630×650mm
Stowed height 1980mm
Stowed length 1430mm
Stowed width 800mm
Machine weight about 540kg
Power supply DC24V with rechargeable battery(2*12V 120Ah)
Power input 0.8kw
Traveling speed 2.5km/h when stored; 0.8km/h once lifted
Climb ability 20%
Ground clearance 80mm
Parking brake Loss of power brake
Standard CE (EN280)
Qty. for FCL 10PCS/20GP




STANDRAD FEATURES

  • Drivable at full height
  • One-hand proportional joystick
  • Dual controls operation (platform and ground)
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • 24V safe control voltage
  • Tilt audible alarm
  • Forklift pocket
  • Smooth, solid and non-marking tires
  • Maintenance-free battery, with battery charge indictor
  • Two drive speed(0.8km/h when lift up; 2.5km/h stored)
4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform

4- 8 m Self Propelled Electric Cherry Picker Single Mast Aerial Work Platform


The brief introduction of electric aerial work platform
Self propelled scissor lift , small platform scissor lift takes battery as the power source,with automatic walking function,
no noise and no emission when working, so be used in indoor occasions such as hotel,shopping mall,airport,museum.
equipped with 90° turning in site steering wheel so it moves flexible, the structure is compact ,suit in the narrow space.
It is available works in different condition, do not need external power supply, do not need artificial traction . Widely
used for aerial installation& maintenance of the working sites without power supply and with smooth working grounds.





Safe & Stable

User's safety is the basic concern point of SIVGE.

Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.



Packing & Shipping


LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-rust covers

Delivery time is usually 30 days according to order qty. and models.





Using purpose:

  1. Business decoration
  2. ceiling/fixture works
  3. industrial facilities maintenance,
  4. lamps and lanterns replacement in halls
  5. maintenance of street lamp
  6. aerial photographs
  7. wall cleaning etc.

Safe & Reliable

Safety is the main concern of SIVGE.

Professional & Innovative



SIVGE technical team has research and development the aerial work platforms for 20 years, especially mast platforms. We obtain dozens of patents and apply these patents to our machines.


We focus on portable aerial work platform, lifting mechanism synchronization, machine stability, operator comfort, and control of advanced, outriggers rationality, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge has build the national standards in aerial work platform fields, establishde High-tech R&D center. build the National key scientific and technological support projects industrial base.





Packing &Shipping


LCL: plywood case with steel pallet

FCL: steel pallet with anti-dust cover

Delivery time is usually 30 days after order comfirmation.
