Six Mast 12m Self Propelled Aerial Lift 400kg Capacity With Big Platform

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
"Its really a good handy machine working nicely. " The machine I am using in my mall, there are three four people came and see it in operation as well I expalin the machine usage and importance, may be they will contact you or me in future, I will let you know. -----Technical manager of Lucky One Mall in Pakistan.

—— Ehtesham Hussain

I'm Online Chat Now

Six Mast 12m Self Propelled Aerial Lift 400kg Capacity With Big Platform

China Six Mast 12m Self Propelled Aerial Lift 400kg Capacity With Big Platform supplier
Six Mast 12m Self Propelled Aerial Lift 400kg Capacity With Big Platform supplier Six Mast 12m Self Propelled Aerial Lift 400kg Capacity With Big Platform supplier Six Mast 12m Self Propelled Aerial Lift 400kg Capacity With Big Platform supplier

Large Image :  Six Mast 12m Self Propelled Aerial Lift 400kg Capacity With Big Platform

Product Details:

Place of Origin: CHINA
Brand Name: SIVGE
Certification: CE / SGS / ISO9001
Model Number: GTWZ12-6012

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: wooden case or steel pallet, 4 units per 20GP
Delivery Time: 10-50 working days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 30 units per month
Contact Now
Detailed Product Description
Product: Mobile Elevated Working Platforms Platform Size: 4080*1080MM
Working Height: 14.0m Capacity: 400kg
Moving Method: Self-propelled Main Material: Aluminium Mast



12m SIX MAST SELF-PROPELLED aerial lift with big platform



Occasions suitable to use this machine:



factories, airports, auto stations and highway toll station etc.



Product Description


Using purpose:



Business decoration, ceiling/fixture works, industrial facilities maintenance



Product standard features

  • Drivable at full height of 12 meter

  • One hand proportional joystick

  • AC inverter motor drive

  • Drive speed interlock

  • Tilt level sensor with audible alarm

  • Overload limit

  • Emergency stop buttons at both controls

  • Emergency lowering device in case of power supply failure

  • Battery charger indictor

  • Forklift pocket

  • Compact size with easy quick guardrail assemblage system

  • Low maintenance requirements will save you time and money.



Specification



12m SIX MAST SELF-PROPELLED aerial lift with big platform

Manufacturer SIVGE
Country of origin China
Model GTWZ12-6012 self-propelled
Working height 13.7m
Platform height 12.0m
Platform capacity 400kg for 2-3 persons with tools
Platform dimension L4080×W1800mm
Stored height 2830mm
Stored length 4220mm
Stored width 1980mm
Machine weight about 4200kg
Power supply DC24V for elevating DC48V for traveling
Power input 1.2kw
Traveling speed 0-1.1m/s
Climb ability 25%


Any degree rotating platform make the work surface at your fingertips


If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.



Product standard features:

  • Drivable at full height
  • Dual controls operation (platform and ground)
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • Battery charge indictor
  • Tilt audible alarm
  • Forklift pocket
  • Pothole protector
  • Maintenance-free battery
  • One-hand proportional joystick

Advantages:

  • Strong four-wheel drive system with great grade ability;
  • Front and rear wheel steering can be achieved;
  • Intelligent one-touch hydraulic leveling legs;
  • Six mast structure with excellent stability;
  • Large platform suitable for number of persons working together;
  • Any degree rotating platform make the work surface at your fingertips;
  • Bus Control System (FCS), LCD operation screen;
  • Provide long bracket to meet the special requirements of materials carrying;
  • Adopt latest international standards for design and manufacture
  • Automatically dangerous operation (overload/inclination) alarm system ;
  • China state invention patent products;



Packaging & Shipping



Seaworthy standard export package



FCL: steel pallet with anti-dust covers



Delivery time is usually 60 days according to order qty. and models.

Product photos

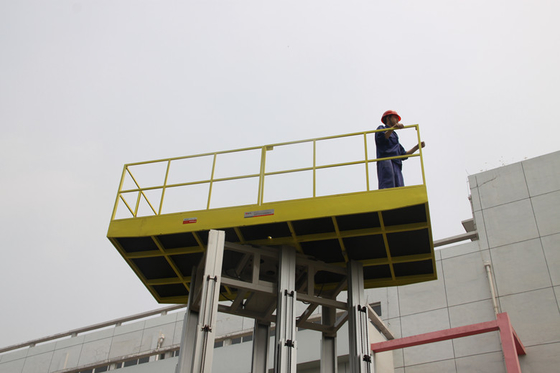

Six Mast 12m Self Propelled Aerial Lift 400kg Capacity With Big Platform



After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely.

SIVGE regards product safety as basic point of connecting to users.


1)SIVGE firmly adheres to domestic and international standards in the process of designing, manufacturing and transporting; the strength of the parts and the stability of the whole machine must undergone strict calculation and experimental verification.
2)All products are tested by the national authoritative testing institutions.
3)The production process, inspection and parts purchasing are fully in accordance with quality assurance system.
