Premium quality Self Propelled Vertical Mast Lift Manlift Aerial Work Platform Boom Lift

Basic Information
Place of Origin: CHINA
Brand Name: SIVGE
Certification: ISO9001
Model Number: GTHZ8-510870
Minimum Order Quantity: 1 unit
Price: USD 20000 - 28000 / Units
Packaging Details: Standard
Delivery Time: within 30 working days
Payment Terms: T/T, L/C, D/P,
Supply Ability: 100 units per month
Detail Information
Model: GTHZ8-510870 / GTHZ12-6112 Product Name: Mast Boom Lift
Working Height: 6-10 M Capacity: 200Kg
Platform Rotation: 360 Degree Reach Out: 3 Meters
High Light:

Mobile Elevated Platform

,

Hydraulic Lift Platform


Product Description



Premium quality Self Propelled Vertical Mast Lift Manlift Aerial Work Platform Boom Lift

Z51 self-propelled mast type boom lift.pdf





Product standard features

  • Drivable at full height

  • One hand proportional joystick

  • Drive speed interlock

  • Tilt level sensor with audible alarm

  • Overload limit

  • 3 meter Outreach

  • 360 degree platform rotation

  • Emergency stop buttons at both controls

  • Emergency lowering device in case of power supply failure

  • Battery charger indictor

  • Forklift pocket

  • Compact size with easy quick guardrail assemblage system

  • Low maintenance requirements will save you time and money.



Specification

3 meter outreach Self Propelled Aluminum Work Boom Lift Platform



Series Z5108
Model-code GTHZ8-510870
Platform height(m) 7.5m
Working height(m) 9.5m
Outreach 3m
Platform rotation 360°
Capacity(kg)/occupants

200Kg/1 for indoor,

125Kg/1 for outdoor

Platform size(mm) 750*720mm
Stowed length(mm) 2700mm
Stowed width(mm) 990mm
Stowed height(mm) 1965mm
Machine weight(kg) 1900Kg
Moving methods Drivable when fully lifted up
Outside/inside turning radius 1.9/0m
Travel speed(Stowed)(km/h) 3.0Km/h
Travel speed (Lift)(km/h) 0.8Km/h
Climb ability 15%
Ground Clearance 66mm
Wheelbase 1445mm
Front wheel Steering wheel 12inch
Rear wheel Driving wheel 12inch
Power supply DC 24V
Power input(kw) 1.5kw
Battery 4*12V/260Ah
Max. allowed wind speed 12.5m/s for outdoor, 4.5m/s for indoor,
Rated oil pressure ≤16MPa



If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.



Occasions suitable to use this machine:



Places may in need of this kind of machine:

Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.



Product Description


Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.

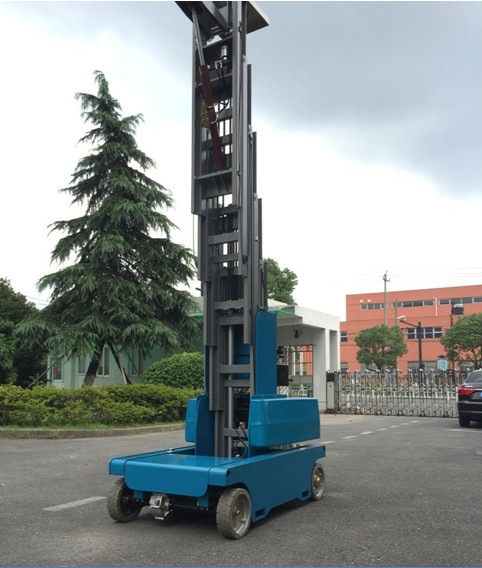

Premium quality Self Propelled Vertical Mast Lift Manlift Aerial Work Platform Boom Lift 0



Premium quality Self Propelled Vertical Mast Lift Manlift Aerial Work Platform Boom Lift 1





Using purpose:

  1. Business decoration
  2. ceiling/fixture works
  3. industrial facilities maintenance,
  4. lamps and lanterns replacement in halls
  5. maintenance of street lamp
  6. aerial photographs
  7. wall cleaning etc.

Safe & Reliable

Safety is the main concern of SIVGE.

Professional & Innovative



SIVGE technical team has research and development the aerial work platforms for 20 years, especially mast platforms. We obtain dozens of patents and apply these patents to our machines.


We focus on portable aerial work platform, lifting mechanism synchronization, machine stability, operator comfort, and control of advanced, outriggers rationality, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge has build the national standards in aerial work platform fields, establishde High-tech R&D center. build the National key scientific and technological support projects industrial base.





Packing &Shipping


LCL: plywood case with steel pallet

FCL: steel pallet with anti-dust cover

Delivery time is usually 30 days after order comfirmation.
