12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
"Its really a good handy machine working nicely. " The machine I am using in my mall, there are three four people came and see it in operation as well I expalin the machine usage and importance, may be they will contact you or me in future, I will let you know. -----Technical manager of Lucky One Mall in Pakistan.

—— Ehtesham Hussain

I'm Online Chat Now

12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift

China 12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift supplier
12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift supplier 12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift supplier 12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift supplier 12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift supplier 12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift supplier

Large Image :  12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWR8-2008/ GTWR10-2010/ GTWR12-2012

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 4000- 8000 / Units
Packaging Details: steel pallets for FCL; plywood case for LCL
Delivery Time: 7-20 working days
Payment Terms: D/P, L/C, T/T
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Name: Aerial Platform Lift Max.working Height: 8/10 / 12 / 14 Meter
Capacity: 300kg Platform Size: 1200*600mm
Color: Customized Max. Platform Height: 8 / 10/ 12 M
Optional: AC / DC



12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift



Download Specification catalog: R20 double mast 8-12m.pdf









Working Conditions



  • Convention center
  • Airports
  • Hotel
  • Auto stations and
  • Highway station
  • Business building
  • Gym





Application Occasions



Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.





Specifications



10 m Aluminum Alloy vertical mast lift manlift double mast lift vertical platform lift aerial work platform



Manufacturer SIVGE
Country of origin China
Model GTWR8-2008/ GTWR10-2010/ GTWR12-2012
Max. Working height 10/ 12/ 14 m
Max. Platform height  8 /10/ 12m
Platform capacity 300kg
Platform dimension L1200×W600
Stored height 1960mm
Stored length 2550mm
Stored width 1100mm
Machine weight about 720kg
Power supply

 DC24V with rechargeable battery

Power input 1.2kw
Dual control Platform and base control
Standard EN280

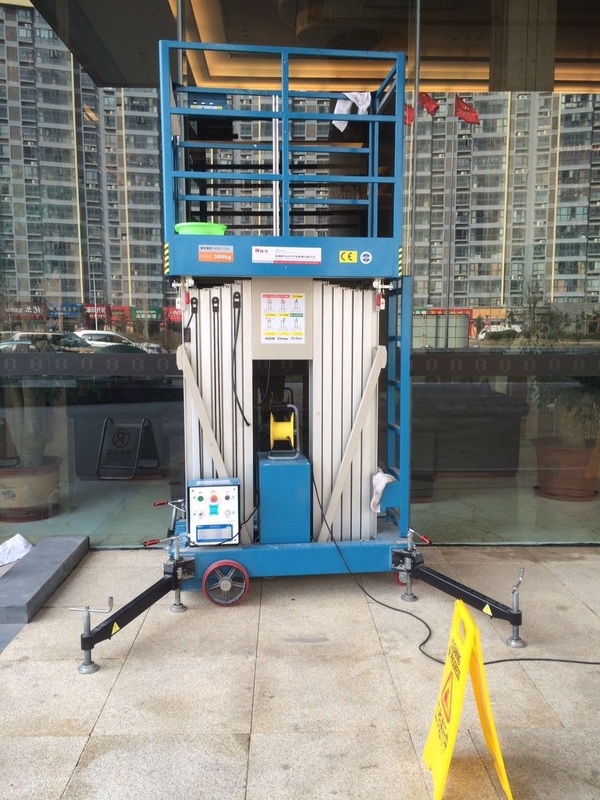

Photos as below;



 12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift



12 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift



Product features

  •  Overload limit
  •  Double safety protection with leveling stabilizers and outriggers support
  •  Hoist points at four corners
  •  No-marking wheels
  •  Dual controls operation
  •  Compact design with easy quick guardrail assemblage
  •  Emergency stop buttons at both controls
  •  Emergency lowering device in case of power supply failure
  •  24V safe control voltage
  •  The hydraulic pipe that we use is steel pipe (even we use hammer to hit against the pipe, the pipe will not break with oil leakage) while others usually use hose which is easy for leaking and damage by hit or during usage.
  •  Mast cover: PU mast cover protects the masts from dusts, and will not hurt your fingers which the steel cover cannot achieve.
  •  Conform to EN 280:2013



Safe & Stable

safety is the basic concern point of SIVGE.

Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.





Packing &Shipping


LCL: plywood case with steel pallet at bottom

FCL: 7PCS per 20GP by steel pallet with anti-dust covers

Delivery time is usually 30 days according to order qty. and models.



Using purpose:

  1. Business decoration
  2. ceiling/fixture works
  3. industrial facilities maintenance,
  4. lamps and lanterns replacement in halls
  5. maintenance of street lamp
  6. aerial photographs
  7. wall cleaning etc.

Safe & Reliable

Safety is the main concern of SIVGE.

Professional & Innovative



SIVGE technical team has research and development the aerial work platforms for 20 years, especially mast platforms. We obtain dozens of patents and apply these patents to our machines.


We focus on portable aerial work platform, lifting mechanism synchronization, machine stability, operator comfort, and control of advanced, outriggers rationality, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge has build the national standards in aerial work platform fields, establishde High-tech R&D center. build the National key scientific and technological support projects industrial base.





Packing &Shipping


LCL: plywood case with steel pallet

FCL: steel pallet with anti-dust cover

Delivery time is usually 30 days after order comfirmation.
