Aluminum Twin Mast 1.5kw 10m Elevated Work Platform

Basic Information
Place of Origin: CHINA
Brand Name: SIVGE
Certification: ISO/ CE / TUV
Model Number: GTWR8-2008 / GTWR10-2010
Minimum Order Quantity: 1 unit
Price: USD 4000- 8000 / Units
Packaging Details: Standard
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Detail Information
Power: 1.5kw Table Size: 1200X600mm
Weight: 680kg Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas Lift Drive / Actuation: Hydraulic,Electric Motor
Min. Lifting Height: 1.68m Lift Mechanism: Telescoping Lift
Rated Loading Capacity: 300kg Max. Lifting Height: 10m
Color: Blue,Customers' Requirements Material: High-strength Aluminum Alloy Material
Application: Aerial Work,Aerial Installation,Maintenance,maintenance And Other Operation,high Building Working Lift Platofmorm
High Light:

1.5kw elevated work platform

,

10m elevated work platform

,

300kg Elevated Work Platform


Product Description

10 M Aluminum Alloy Double Mast Man lift Aerial Work Platform aerial platform lift



We are main manufacturer of mast platforms and boom lifts of China.

We have manufacture mast platforms 30 years. 10m High quality aircraft-quality aluminum twin mast elevated work platform manlift,

mainly design for indoor/ outdoor high level aerial works.

this models comes with aircraft-quality aluminum mast frame, compact & light weight,

the mast makes users comfort and safety at all working heights.





Download Specification catalog: R20 double mast 8-12m.pdf













Working Conditions



  • Convention center
  • Airports
  • Hotel
  • Auto stations and
  • Highway station
  • Business building
  • Gym





Application Occasions



Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.





Specifications



10 m Aluminum Alloy vertical mast lift manlift double mast lift vertical platform lift aerial work platform



Manufacturer SIVGE
Country of origin China
Model GTWR8-2008/ GTWR10-2010/ GTWR12-2012
Max. Working height 10/ 12/ 14 m
Max. Platform height 8 /10/ 12m
Platform capacity 300kg
Platform dimension L1200×W600 / 1330* 600mm
Stored height 2060mm
Stored length 1390mm
Stored width 880mm
Machine weight about 610kg/ 680kg / 810kg
Power supply DC24V with rechargeable battery
Power input 1.2kw
Dual control Platform and base control
Standard EN280

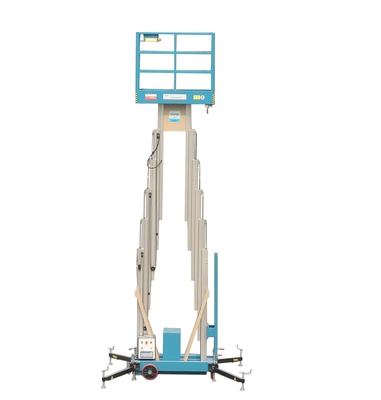

Photos as below;



Aluminum Twin Mast 1.5kw 10m Elevated Work Platform 0

Aluminum Twin Mast 1.5kw 10m Elevated Work Platform 1



Product features

  • Overload limit
  • Double safety protection with leveling stabilizers and outriggers support
  • Hoist points at four corners
  • No-marking wheels
  • Dual controls operation
  • Compact design with easy quick guardrail assemblage
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • 24V safe control voltage
  • The hydraulic pipe that we use is steel pipe (even we use hammer to hit against the pipe, the pipe will not break with oil leakage) while others usually use hose which is easy for leaking and damage by hit or during usage.
  • Mast cover: PU mast cover protects the masts from dusts, and will not hurt your fingers which the steel cover cannot achieve.
  • Conform to EN 280:2013



Safe & Stable

safety is the basic concern point of SIVGE.

Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.





Packing &Shipping


LCL: plywood case with steel pallet at bottom

FCL: 7PCS per 20GP by steel pallet with anti-dust covers

Delivery time is usually 30 days according to order qty. and models.



Using purpose:

  1. Business decoration
  2. ceiling/fixture works
  3. industrial facilities maintenance,
  4. lamps and lanterns replacement in halls
  5. maintenance of street lamp
  6. aerial photographs
  7. wall cleaning etc.

Safe & Reliable

Safety is the main concern of SIVGE.

Professional & Innovative



SIVGE technical team has research and development the aerial work platforms for 20 years, especially mast platforms. We obtain dozens of patents and apply these patents to our machines.


We focus on portable aerial work platform, lifting mechanism synchronization, machine stability, operator comfort, and control of advanced, outriggers rationality, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge has build the national standards in aerial work platform fields, establishde High-tech R&D center. build the National key scientific and technological support projects industrial base.





Packing &Shipping


LCL: plywood case with steel pallet

FCL: steel pallet with anti-dust cover

Delivery time is usually 30 days after order comfirmation.
