Blue Self Propelled Aerial Lift Single Mast Self Propelled With 5 m Working Height

China Blue Self Propelled Aerial Lift Single Mast Self Propelled With 5 m Working Height supplier
Blue Self Propelled Aerial Lift Single Mast Self Propelled With 5 m Working Height supplier Blue Self Propelled Aerial Lift Single Mast Self Propelled With 5 m Working Height supplier

Large Image :  Blue Self Propelled Aerial Lift Single Mast Self Propelled With 5 m Working Height

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWZ3-1003

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: 10PCS/20GP; plywood case for LCL
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Name: Mobile Scissor Lift Platform Max.working Height: 4.7meter
Rated Load: 160kg Number Of Persons Allowed: 1 Person
Stowed Dimension: 1430*800*1980mm Standard: CE/TUV/SGS
Move Method: Self-propelled Max. Platform: 3m

single mast self-propelled aerial lift / man lift with 5m working height

  •  CE certificated
  •  Suitable for one person work on
  •  Best quality and performance
  •  Good reliable after-sales service



Specifications of

single mast self-propelled aerial lift / man lift with 5m working height



Brand SIVGE
Model GTWZ3-1003
Max. Platform Height 3.0m
Max. Working Height 4.7m
Loading Capacity 160kg
Number Of Person Allowed 1
Platform Dimension (mm) 630*650
Power Supply DC24V
Power input 0.8kw
Climb ability 20%
Move method drivable at full height
Stowed Dimension (mm) 1430*800*1980
Machine Weight (kg) 520

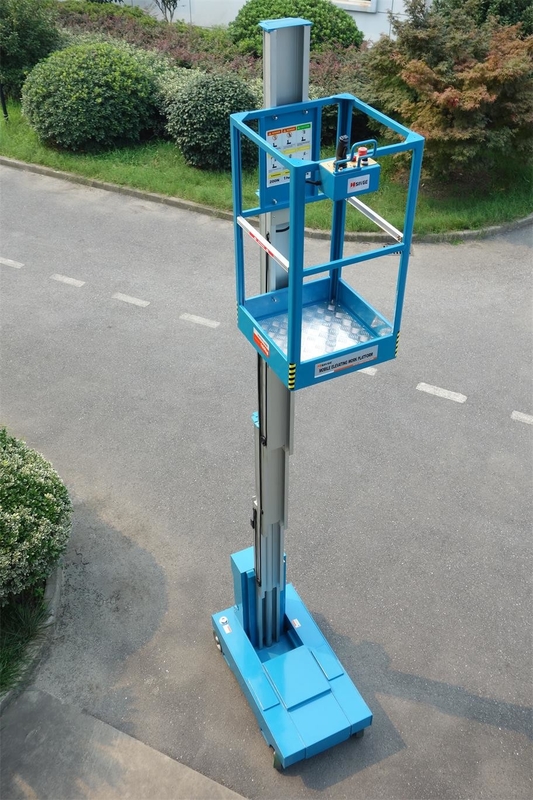

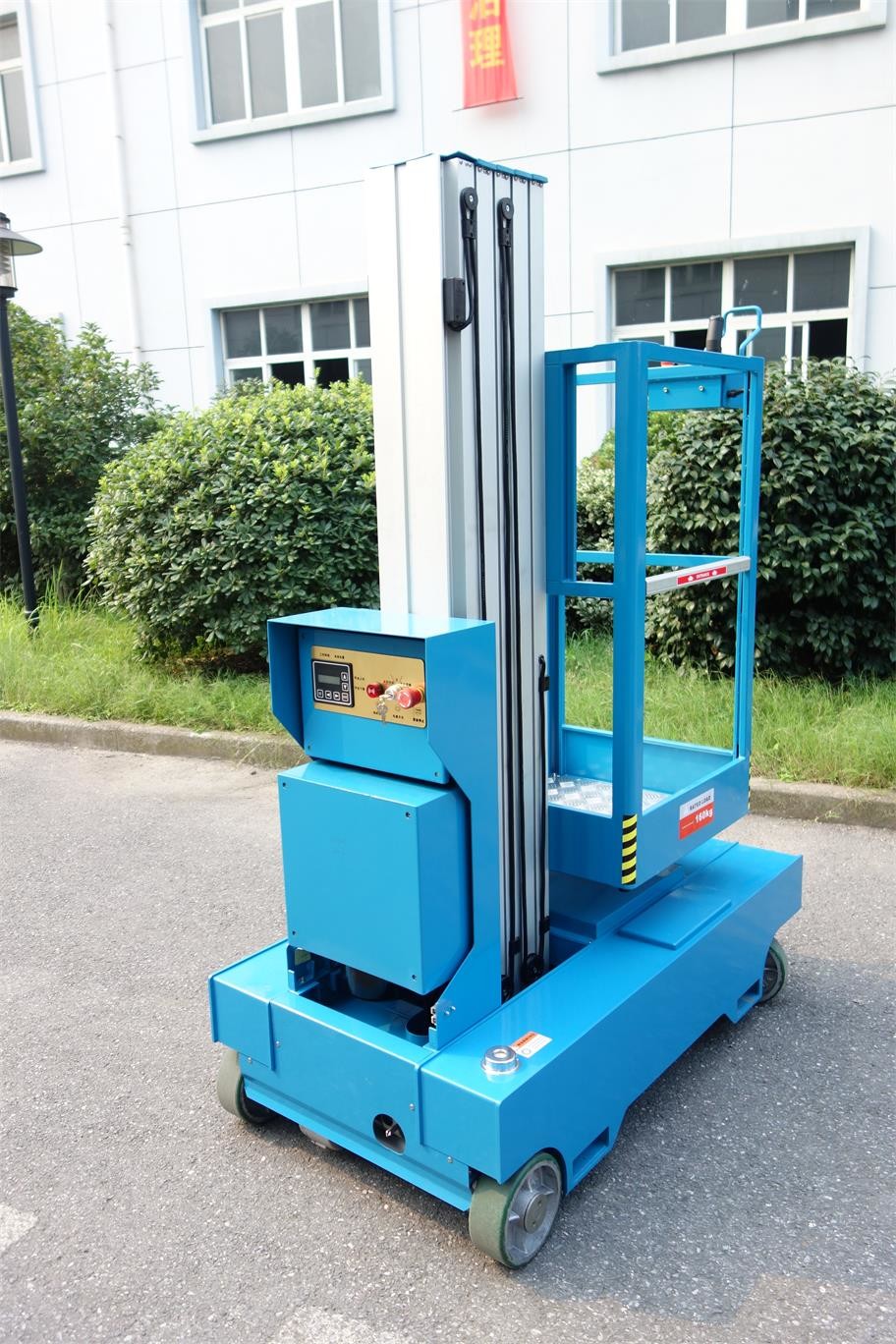

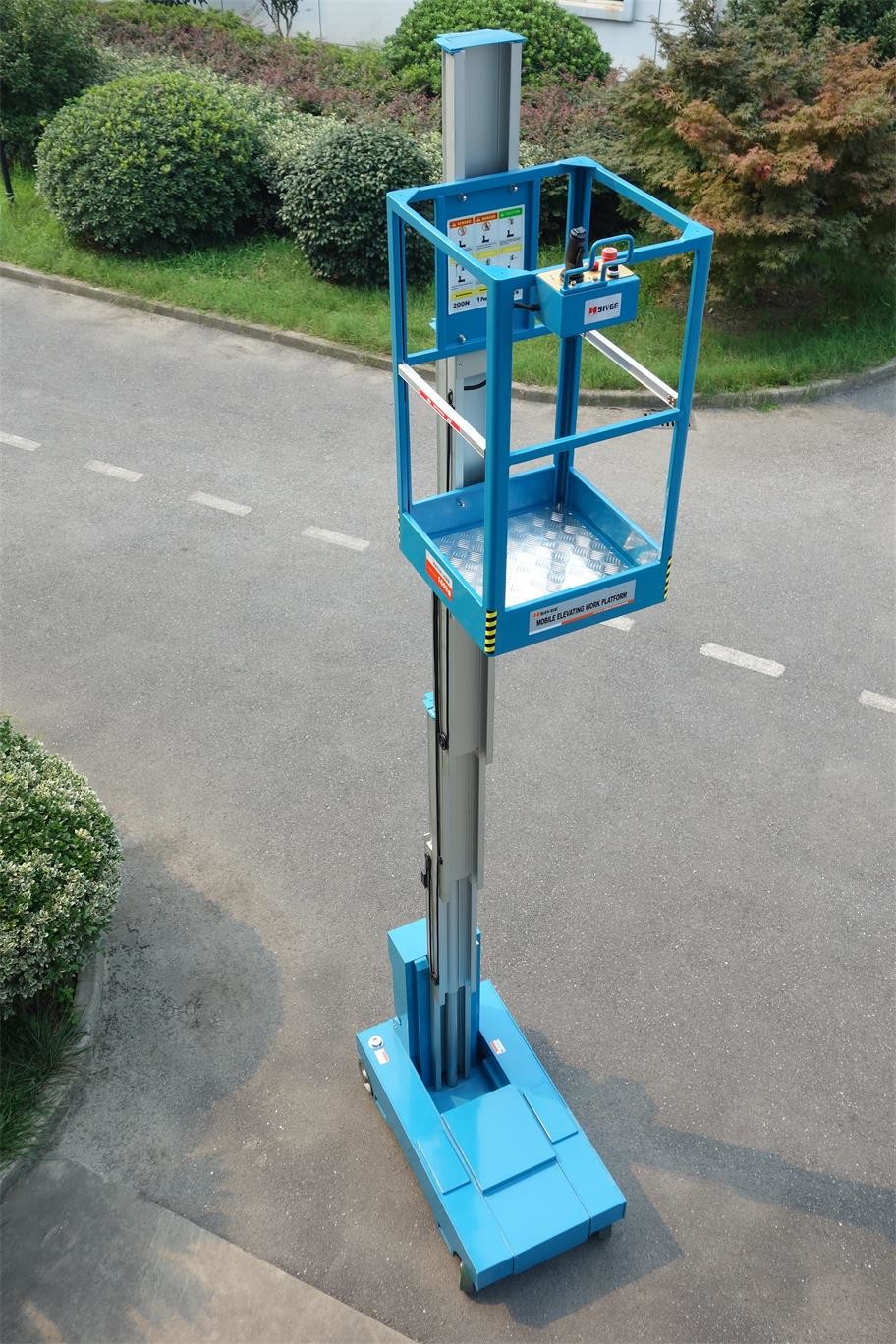

product photos



 Blue Self Propelled Aerial Lift Single Mast Self Propelled With 5 m Working Height



STANDRAD FEATURES

  • 24V safe control voltage
  • Tilt audible alarm
  • Forklift pocket
  • Smooth, solid and non-marking tires
  • Drivable at full height
  • One-hand proportional joystick
  • Dual controls operation (platform and ground)
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • Maintenance-free battery, with battery charge indictor
  • Two drive speed(0.8km/h when lift up; 2.5km/h stored)

Packing & Shipping


LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-rust covers

Delivery time is usually 30 days according to order qty. and models.



Blue Self Propelled Aerial Lift Single Mast Self Propelled With 5 m Working Height



After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely.
