One Person Hydraulic Elevating Platform , 18m Height Multi Mast Aerial Platform Lift

Certification
Good quality Aluminum Work Platform for sales
Good quality Aluminum Work Platform for sales
"Its really a good handy machine working nicely. " The machine I am using in my mall, there are three four people came and see it in operation as well I expalin the machine usage and importance, may be they will contact you or me in future, I will let you know. -----Technical manager of Lucky One Mall in Pakistan.

—— Ehtesham Hussain

I'm Online Chat Now

One Person Hydraulic Elevating Platform , 18m Height Multi Mast Aerial Platform Lift

China One Person Hydraulic Elevating Platform , 18m Height Multi Mast Aerial Platform Lift supplier
One Person Hydraulic Elevating Platform , 18m Height Multi Mast Aerial Platform Lift supplier One Person Hydraulic Elevating Platform , 18m Height Multi Mast Aerial Platform Lift supplier

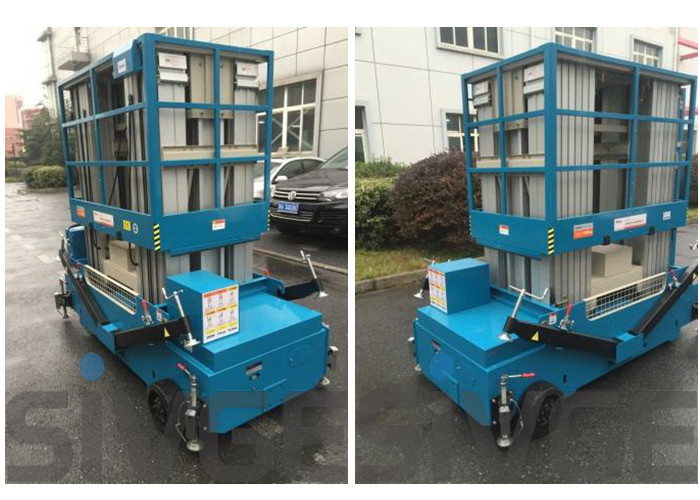

Large Image :  One Person Hydraulic Elevating Platform , 18m Height Multi Mast Aerial Platform Lift

Product Details:

Place of Origin: CHINA
Brand Name: SIVGE
Certification: CE
Model Number: GTWY16-4216

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: steel pallet or plywood case
Delivery Time: 30-50 work days
Payment Terms: D/P, L/C, T/T
Supply Ability: 30 units per month
Contact Now
Detailed Product Description
Name: Hydraulic Work Platform Lift Quality Management System: ISO9001 ISO14001 OHSAS18001
Standards: EN280:2013 Move Method: Powered Self-propeller
Material: Aluminum Alloy Color: According To Your Request

multi mast hydraulic aerial working platform / with 18m platform height for one person work on





  • CE certificated.
  • Suitable for one persons work on
  • Best quality and performance
  • Good reliable after-sales service


Widely used in electrical, mechanical, utilities, chemical, railway stations, docks, airports and other
industry equipment installation, electrical maintenance, high operating and so on.



Specification

of  multi mast hydraulic aerial working platform / with 18m platform height for one person work on



Brand

SIVGE

Model

GTWY18-4218

Max. Platform Height

18m

Max. Working Height

20m

Loading Capacity

136kg

Number Of Person Allowed

1

Platform Dimension (mm)

1480*860

Outrigger Footprint (mm)

3350*3000

Power Supply

AC220V/50Hz

Power Input(kw)

AC:0.75/1.5kw

Move method

motor-propelled

Stowed Dimension (mm)

2360*1250*2180

Machine Weight (kg)

About 2150





If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.





Packaging & Shipping



  • LCL: plywood case with steel pallet at bottom
  • FCL: steel pallet with anti-dust covers (4PCS/20GP)
  • Delivery time is usually 45 days according to order qty. and models

Our Services

Service is the extension of quality



With outstanding quality and loyal service to pursue the most satisfaction of customers.



Pre-sale Services:



· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.

· User jointly develop applied to industry-specific special purpose machinery.



Sale of services:



· Provide a detailed production schedule or project plan to the user.

· In accordance with the order or user requirements, coordination of stocking or production cycle.



After-sale Service:



· To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.

· To provide remote service support by phone and network freely.



Other Services:



· Services for product upgrade or remanufacturing.

· To provide more services about Aerial Work Machinery and related industries, such as design, sourcing, rental, etc.
