Motor Driven 5m Height Aerial Work Platform Self Driven Dual Mast Lightweight

China Motor Driven 5m Height Aerial Work Platform Self Driven Dual Mast Lightweight supplier
Motor Driven 5m Height Aerial Work Platform Self Driven Dual Mast Lightweight supplier Motor Driven 5m Height Aerial Work Platform Self Driven Dual Mast Lightweight supplier

Large Image :  Motor Driven 5m Height Aerial Work Platform Self Driven Dual Mast Lightweight

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWZ3-2003

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: 10PC/20GP; plywood case for LCL
Delivery Time: 40 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Product Name: Self Propelled Work Platform Rated Load: 180kg
Max. Platform: 3.2m Stowed Dimension: 1420*800*1970mm
Move Method: Self-propelled Color: According To Your Request

5m working height self driven dual mast aerial work platform / motor driven lift platform





1. CE product;

2. Drivable with platform fully lift up;

3. Mostly suitable to do continuous aerial works;

4. Good  after-sales service





Specifications of



5m working height self driven dual mast aerial work platform / motor driven lift platform



Manufacturer SIVGE
Country of origin China
Model GTWZ3-2003 self-propelled
Working height 4.9m
Platform height 3.2m
Platform capacity 180kg for one person with tools
Platform dimension L938×W740mm
Stored height 1970mm
Stored length 1420mm
Stored width 800mm
Machine weight about 540kg
Power supply DC24V with battery
Power input 0.8kw
Traveling speed 2.5km/h when stored; 0.8km/h once lifted
Climb ability 25%
Parking brake Loss of power brake



If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.

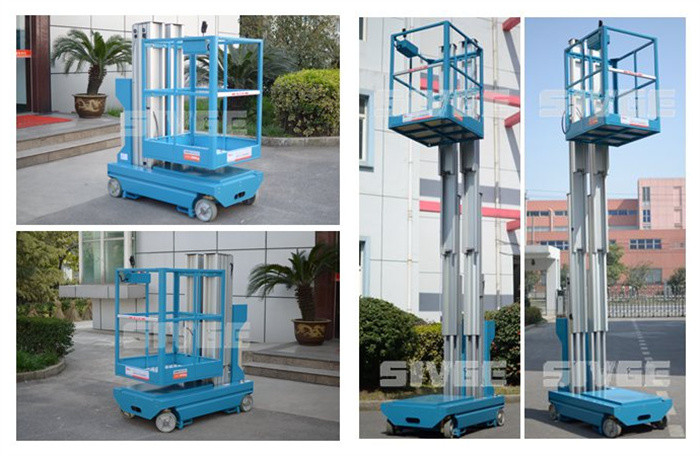

product photos



 Motor Driven 5m Height Aerial Work Platform Self Driven Dual Mast Lightweight



STANDARD FEATURES

  • Drivable at full height
  • Light in weight
  • One-hand proportional joystick
  • Tilt audible alarm
  • Forklift pocket
  • Smooth, solid and non-marking tires
  • Dual controls operation (platform and ground)
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • 24V safe control voltage
  • Maintenance-free battery, with battery charge indictor
  • Two drive speed(0.8km/h when lift up; 2.5km/h stored)

Packing & Shipping


LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-rust covers

Delivery time is usually 40 days according to order qty. and models.



Motor Driven 5m Height Aerial Work Platform Self Driven Dual Mast Lightweight



After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely
