7.5m Elevated Work Platforms , Mast Type 3m Trailer Mounted Boom Lift

China 7.5m Elevated Work Platforms , Mast Type 3m Trailer Mounted Boom Lift supplier
7.5m Elevated Work Platforms , Mast Type 3m Trailer Mounted Boom Lift supplier 7.5m Elevated Work Platforms , Mast Type 3m Trailer Mounted Boom Lift supplier

Large Image :  7.5m Elevated Work Platforms , Mast Type 3m Trailer Mounted Boom Lift

Product Details:

Place of Origin: CHINA
Brand Name: SIVGE
Certification: ISO9001
Model Number: GTHZ8-510870

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: standard export packing
Delivery Time: within 60 working days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 30 units per month
Contact Now
Detailed Product Description
Aerial Lift: GTHZ8-510870 Platform Size: 750*720*1100mm
Platform Height: 7.5m Capacity: 200Kg/1 For Indoor, 125Kg/1 For Outdoor
Platform Rotation: 360 Degree Reach Out: 3 Meters



7.5m self propelled aerial work platform / Mast type Boom Lift with 3 meter outreach work



Occasions suitable to use this machine:



Places may in need of this kind of machine:

Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.



Product Description


Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.





Product standard features

  • Drivable at full height

  • One hand proportional joystick

  • Drive speed interlock

  • Tilt level sensor with audible alarm

  • Overload limit

  • 3 meter Outreach

  • 360 degree platform rotation

  • Emergency stop buttons at both controls

  • Emergency lowering device in case of power supply failure

  • Battery charger indictor

  • Forklift pocket

  • Compact size with easy quick guardrail assemblage system

  • Low maintenance requirements will save you time and money.



Specification

7.5m self propelled aerial lift / Mast type Boom Lift with 3 meter outreach work



Series Z5108
Model-code GTHZ8-510870
Platform height(m) 7.5m
Working height(m) 9.5m
Outreach 3m
Platform rotation 360°
Capacity(kg)/occupants

200Kg/1 for indoor,

125Kg/1 for outdoor

Platform size(mm) 750*720mm
Stowed length(mm) 2700mm
Stowed width(mm) 990mm
Stowed height(mm) 1965mm
Machine weight(kg) 1900Kg
Moving methods Drivable when fully lifted up
Outside/inside turning radius 1.9/0m
Travel speed(Stowed)(km/h) 3.0Km/h
Travel speed (Lift)(km/h) 0.8Km/h
Climb ability 15%
Ground Clearance 66mm
Wheelbase 1445mm
Front wheel Steering wheel 12inch
Rear wheel Driving wheel 12inch
Power supply DC 24V
Power input(kw) 1.5kw
Battery 4*12V/260Ah
Max. allowed wind speed 12.5m/s for outdoor, 4.5m/s for indoor,
Rated oil pressure ≤16MPa



If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.



Product photos

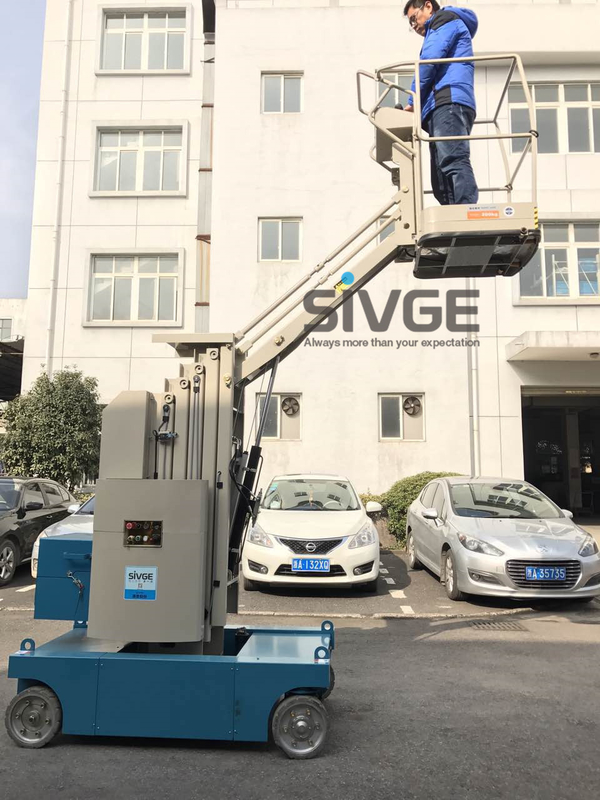

7.5m Elevated Work Platforms , Mast Type 3m Trailer Mounted Boom Lift
