| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SIVGE |
| Certification: | ISO9001 |
| Model Number: | SP50 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | standard export packing |
| Delivery Time: | within 20 working days |
| Payment Terms: | T/T,D/A, L/C, D/P, |
| Supply Ability: | 300 units per month |
| Product Name: | One Man Lift | Max.Working Height: | 5.1m |
|---|---|---|---|
| Platform Size: | 696*564 | Capacity: | 136kg +90 +115kg |
| Capacity: | 115kg For Ground Shelf | ||
| High Light: | Vertical Man Lift,Single Man Lift |
||
Specification

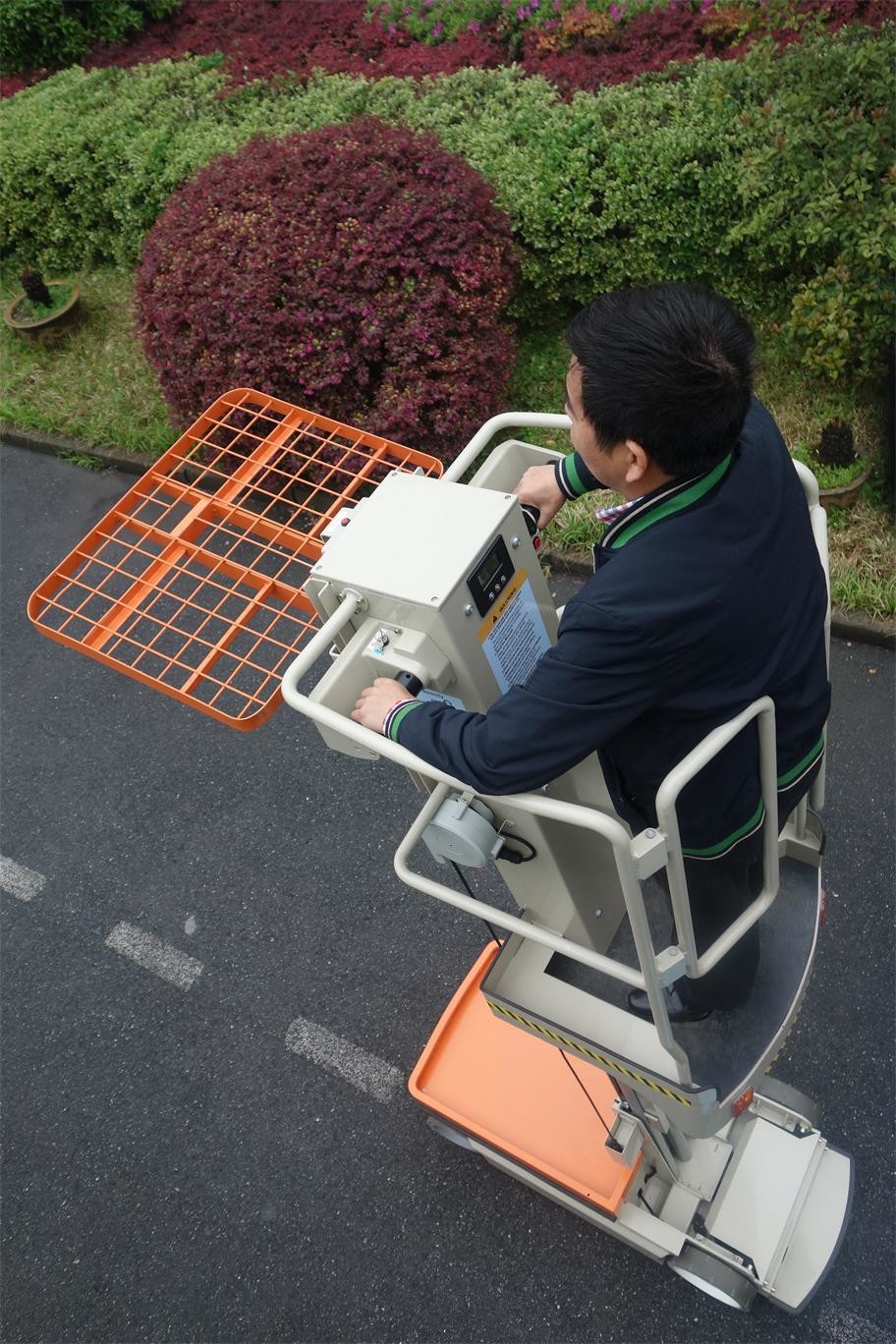

3.1m self propelled aerial lift / electric cargo handling work platform
| Model-code | SP50 |
| DIMENSIONS | |
| Max.platform height(m) | 3100 |
| Max.working height(m) | 5100 |
| Platform size(mm) | 696*564 |
| Platform Entry Height | |
| Occupants (persons permitted on platform) | 1 |
| Stowed length(mm) | 1595 |
| Stowed width(mm) | 750 |
| Stowed height(mm) | 1528 |
| Machine weight(kg)(for reference) | 530Kg |
| LOAD CAPACITIES | |
| Load Capacity Operator Compartment (kg) | 136Kg |
| Powered Cargo Shelf Capacity (kg) | 90Kg |
| Ground Cargo Shelf Capacity (kg) | 115Kg |
| PERFORMANCE | |
| Moving methods | Self propelled type |
| Drive speed(Level 1/2/3) | 5.4km/h 3.2 km/h 1.6 km/h |
| Driving System | Two-Handed Proportional |
| Platform Cycle Performance | Raising 18 sec Lowering 20 sec |
| Max. Steering angle | 80º |
| Turning Radius Outside/ inside | 1.4m/0m |
| Climb ability | 15% |
| Max. allowed wind speed | 12.5m/s |
| Rated oil pressure | 10MPa |
| Maximum Horizontal Lateral Force | 200 Newtons |
| Tyres | Non-marking, Anti-Skid Solid Rubber |
| POWER SOURCE | |
| Power supply | DC 24V |
| Power input(kw) | 1.2kw |
| Battery | 12V/150Ah *2 pieces |
| Recharge Power Supply | 110- 250V AC |
If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.
Electric cargo handling work platform uses modern technology, moves flexible, lifts and lowers smoothly; It is one of the best equipment for stock picking.
The Electric cargo handling work platform has the following features:
Safe & Reliable
LCL: plywood case with steel pallet
FCL: steel pallet with anti-dust cover
Lead time 30 days after order comfirmation.
