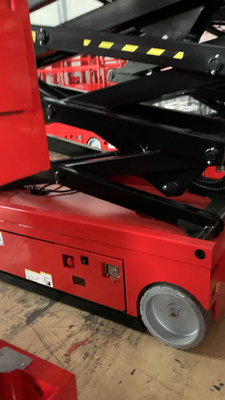

10m Height 450kg Hydraulic Scissor Lift Platform For Construction

Basic Information
Place of Origin: China
Brand Name: SIVGE
Certification: CE / ISO / SGS / KCS
Model Number: ZS120-320
Minimum Order Quantity: 1 Unit
Price: USD 8000-12000 Unit
Packaging Details: Standard
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 12000 units year
Detail Information
Type: Scissor Lift Platform Working Height: 10m
Platform Height: 8 M Lift Capacity: 450kg
Overall Dimensions: 2480*1150*1770 Mm Platform Size: 2.27*1.14 M
Battery: 300AH, 24V Turing Radius: 2.2 M
High Light:

450kg Hydraulic Scissor Lift Platform


10m Hydraulic Scissor Lift Platform


10m Height scissor platform

Product Description

Chinese Factory Use Equipment Use Self Propelled Electric Scissor Lift 12 m to 16 meters



standered configuration
● Proportion control
● Charging protection
● Automatic brake
● Tilt sensor alarm
● Fault diagnosis
● Energency stop
● Emergency lowering
● Pothole protection
● Foldable guardrails
● Extendable platform
● Bio-reducible hydraulic
● Flashing beacon
● Hour meter
● Self-lock gate
● Horn
● Action buzzer
● Safety Bracket
● Trackless tire
Main Features:
* The latest DTC control system with fault diagnosis system and voice guide.
* Hydraulic driving with balance valve, travel brake is more stable.
* With optional configuration of DC power drive, battery life is longer.
* Equipped with quick Charger, it is more time-saving and efficient.
* Double loading system, using efficiency of equipment is much improved.
* Centered scissor arm design, the comfort and stability of platform is improved.
* Higher working height with same numbers of scissor arms.
* Adopting electrophoresis coated, anti-corrosion performance triply improved


1. Power steering: small turning radius, it can work In the narrow space.
2. Extension platform: Makes user reach the working place with the extended platform.

3. Hydrostatic transmissionmakes driving much smooth and safety as you need.



Download Brochure: Z series scissor lifts-Sivge-2019.pdf









Platform height

10 m

Working height

12 m

Load capacity


Table size

2270* 1150 mm

Machine weight

3250 kg

Overall width

1400 mm

Stowed size

2480*1150*1910 mm

Driving mode

Self propelled

Lifting power

DC Battery



10m Height 450kg Hydraulic Scissor Lift Platform For Construction 110m Height 450kg Hydraulic Scissor Lift Platform For Construction 210m Height 450kg Hydraulic Scissor Lift Platform For Construction 3

Product Description



Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
