6m Aluminum Self Propelled Vertical Mast Lift Hydraulic Ladder For With 480KG Capacity

Basic Information
Place of Origin: CHINA
Brand Name: SIVGE
Certification: CE SGS
Model Number: GTWZ6-4006
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: wooden case or steel pallet
Delivery Time: 7-50 work days
Payment Terms: D/P, T/T, L/C
Supply Ability: 30 units per month
Detail Information
Standards: CE(EN280:2013) Certificate: ISO9001; ISO14001 OHSAS18001
Max. Working Height: 8.0m Loading Capacity: 480kg
Material: Aluminum Alloy Color: According To Your Request
High Light:

Push Around Man Lift

,

Vertical Personnel Lift


Product Description



6m aluminum self propelled vertical mast lift / hydraulic ladder for with 480KG capacity


Product Description


Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.





Occasions suitable to use this machine:



Places may in need of this kind of machine:

Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.




Product standard features

  • Drivable at full height

  • One hand proportional joystick

  • AC inverter motor drive

  • Drive speed interlock

  • Tilt level sensor with audible alarm

  • Overload limit

  • Emergency stop buttons at both controls

  • Emergency lowering device in case of power supply failure

  • Battery charger indictor

  • Forklift pocket

  • Compact size with easy quick guardrail assemblage system

  • Low maintenance requirements will save you time and money.



Specification

6m aluminum self propelled vertical mast lift / hydraulic ladder for with 480KG capacity



Brand SIVGE
Model-Code GTWZ6-4006
Max. Platform Height 6m
Max. Working Height (m) 8m
Loading Capacity (kg) 480
Number Of Person Allowed 2 persons
Platform Dimension (mm) 1760×860
Horizontal Extension (mm) 800 (optional)
Rated load for extension (kg) 100(optional)
Power Supply DC24V&DC48V
Motor

For Lifting (kw): 2.2 For traveling (kw): 3.0

Traveling speed (km/h)

Stored state: 2.5

Lifted state: 0.8

Min. swerve radius (m) 4.0
Stowed Dimension (mm) L×W×H: 2430×1150×1980
Machine weight about(kg) 2350

  • rated load for extenson: 100kg
  • Optional funtion: horizontal extension platform for 800mm at one side;

If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.

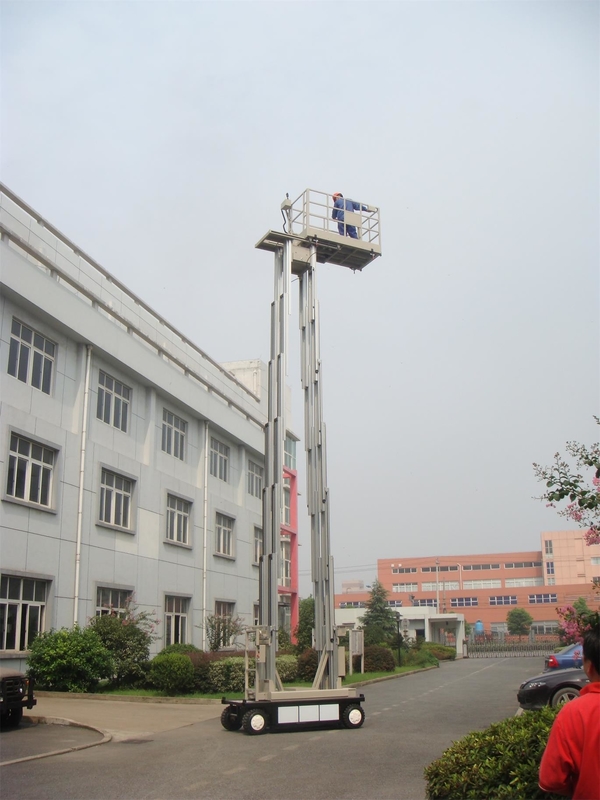

Product photos




Packing & Shipping


LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-rust covers     20GP container for 4 set

Delivery time is usually 40 days according to order qty. and models.





After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely.
