|Place of Origin:||CHINA|
|Certification:||CE / SGS / ISO9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||wooden case or steel pallet, 4 units per 20GP|
|Delivery Time:||10-50 working days|
|Payment Terms:||T/T, L/C, D/P, D/A|
|Supply Ability:||30 units per month|
|Name:||Push Around Vertical Mast Lift||Platform Size:||1765*870*1100mm|
|Moving Method:||Self-propelled||Color:||According To Your Request|
Push Around Vertical Lift,
Push Around Man Lift
Occasions suitable to use this machine:
Places may in need of this kind of machine:
Office buildings, hospitals, warehouses, factories, museums, auditoriums, gymnasium, business/convention center, airports, auto stations and highway toll station etc.
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
Product standard features
Drivable at full height
One hand proportional joystick
AC inverter motor drive
Drive speed interlock
Tilt level sensor with audible alarm
Emergency stop buttons at both controls
Emergency lowering device in case of power supply failure
Battery charger indictor
Compact size with easy quick guardrail assemblage system
Low maintenance requirements will save you time and money.

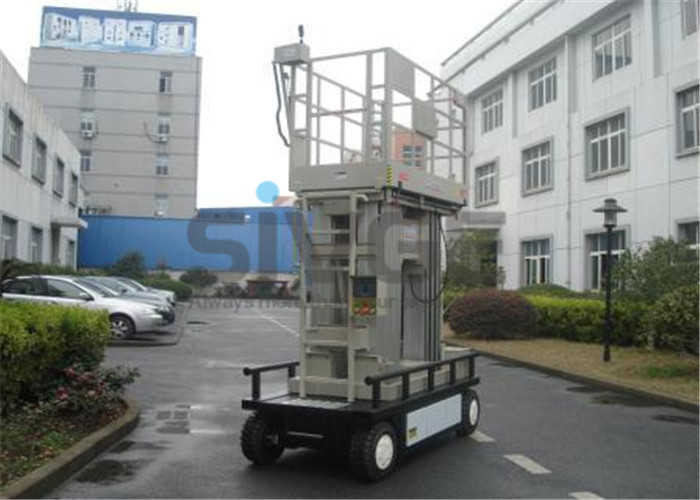

10m four mast self propelled vertical mast lift / aerial lift for continuous aerial working purpose
|Max. Platform Height||10m|
|Max. Working Height (m)||12m|
|Loading Capacity (kg)||300|
|Number Of Person Allowed||2 persons|
|Platform Dimension (mm)||1760×860|
|Horizontal Extension (mm)||800 (optional)|
|Rated load for extension (kg)||100(optional)|
For Lifting (kw): 2.2 For traveling (kw): 3.0
|Traveling speed (km/h)||
Stored state: 2.5
Lifted state: 0.8
|Min. swerve radius (m)||2.5|
|Stowed Dimension (mm)||L×W×H: 2430×1150×1980|
|Machine weight about(kg)||2560|
If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.
LCL: plywood case with steel pallet at bottom
FCL: steel pallet with anti-rust covers 20GP container for 4 set
Delivery time is usually 10-50 working days according to order qty. and models.
SIVGE regards product safety as basic point of connecting to users.
1)SIVGE firmly adheres to domestic and international standards in the process of designing, manufacturing and transporting; the strength of the parts and the stability of the whole machine must undergone strict calculation and experimental verification.
2)All products are tested by the national authoritative testing institutions.
3)The production process, inspection and parts purchasing are fully in accordance with quality assurance system.
