|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||steel pallets for FCL;plywood case for LCL|
|Delivery Time:||7-40 working days|
|Payment Terms:||L/C, T/T, D/P|
|Supply Ability:||50 units per month|
|Product Name:||Mobile Elevated Platform||Max.working Height:||8 Meter|
|Rated Load/capacity:||480kg For 2 Persons||Stowed Dimension:||2360*1250*1860mm|
|Standard:||CE/TUV/SGS||Move Method:||Manual Push Around / Electrical Motor Propelled|
Mobile Elevated Platform,
Hydraulic Lift Platform

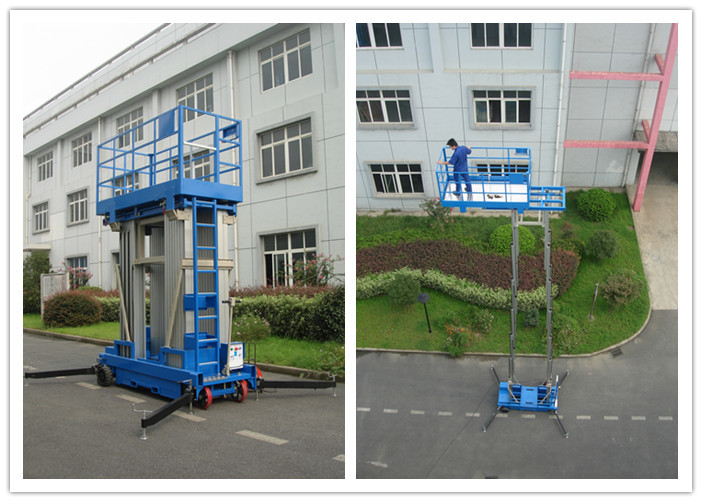

Four Mast two men work Aluminum Work Platform with 8m working height and 480kg load capacity
Occasions suitable to use this machine:
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
Places may in need of this kind of machine:
Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.
Four Mast two men work Aluminum Work Platform with 8m working height and 480kg load capacityy
|Country of origin||China|
|Max. Working height||8m|
|Max. Platform height||6m|
|Platform capacity||480kg for two persons with tools|
|Length with outriggers||3350mm|
|Width with outriggers||3000mm|
|Machine weight about||1300kg|
|Power input||AC: 1.5kw/0.75kw|
Platform and base control
1. Move method can be manual push type or motor-propelled;
2. Horizontal platform extension: 800mm, 1000mm, 1300mm;
Safe & Stable
Professional & Innovative
The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.
SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.
Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.
Safety of Hydraulic System
l Emergency lowering device enable you to lower the platform slowly to its ground position when power is unexpected fail.
l Hydraulic system is equipped with broken valve; it will activate automatically to stop the flowing of hydraulic fluid in case any hydraulic fitting or piping is broken so as to prevent the platform unexpected movement and ensure personnel safety on the platform.
l Piston stroke limit in cylinder acts as second lifting limit protection sequential to the electric limit switch.
Safety of Electrical System
l Ergonomic control panel, power indicator, electric shock protector, circuit breaker etc. features are completely equipped.
l The operator either on the platform or on the ground could press the emergency stop button to pause the platform unexpected movement if any electrical element is failure.
l Lifting limit is controlled by positive break limit switch
l 24 V safety voltages for control circuit system
Safety of Mechanism System
l CE certified stabilizers and electric safety switch elements form the interlock for platform ascending and descending.All mechanism strength for force borne structure are carefully calculated and strictly tested by experimentation, safety factor never less than the standard requirement.
l In stabilizers equipped Aerial Work Platform, patented double protection outriggers eliminate the clearance between the stabilizer and chassis so as to avoid the equipment fluctuating.
Stability and Reliability
l Adopt international high-class electric elements and hydraulic sealing material.
l Adopt international advanced original hydraulic power unit.
l Reasonable overlap length between masts, ensure the lifting mechanism having sufficient rigid when the platform is at its maximum lifting height.
l Parameter optimization of lifting system and hydraulic system, maximize platform lifting stability.
l Rarefied process ensures every component’s quality meet the whole unit’s requirement.
l Redundancy design technical applied, reduce the product malfunction probability to minimum.
l Patented guide roller device make the masts cooperate smoothly without clearance between them and the platform ascending and descending stably. Also ensure the multi-mast sets ascending and descending synchronization entirely.
Comfort and Convenience
l The ratchet wheel swing handle of threaded support bolts in the stabilizers equipped Aerial Work Platform makes it easy to adjust for achieving precise leveling of the platform.
l The assembly of movable platform guard rail could be achieved by just an ascending and descending running, and the rail position is secured and locked by a patented supporting and cramping device, it’s very convenient.
l High-strength aluminum alloy are used for all lifting mast which is light, easy and convenient to move.
l Forklift pocket for safe and easy transportation.
l Compact design makes it easy in passing through narrow and lower passages.
l The safe and convenient bubble level meter.
