Hydraulic Mobile Elevated Aluminum Work Platform With 12m Platform Height

Basic Information
Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWY12-4012
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: steel pallets
Delivery Time: 25-40 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 50 units per month
Detail Information
Product Name: Aluminum Work Platform Application: Aerial Work
Max. Platform Height: 12 Meter Max.working Height: 14 Meter
Rated Load/capacity: 400kg For 2 Persons Stowed Dimension: 2360*1250*2460mm
Standard: CE/TUV/SGS Move Method: Manual Push Around / Electrical Motor Propelled
High Light:

Mobile Elevated Platform

,

Hydraulic Lift Platform


Product Description

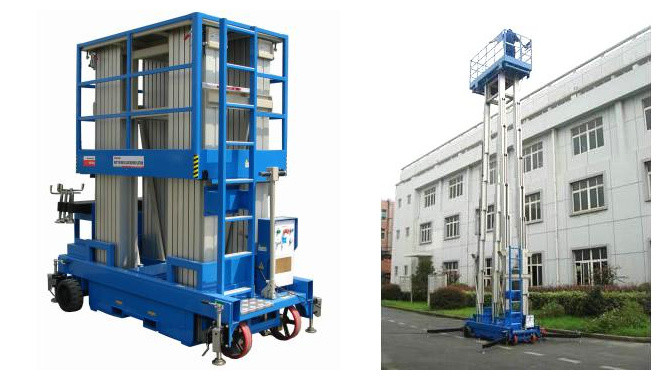

Hydraulic aluminum alloy Four Mast blue Aluminum Work Platform with 12m platform height




Specifications of
Hydraulic aluminum alloy Four Mast blue Aluminum Work Platform with 12m platform height


Manufacturer SIVGE
Country of origin China
Model GTWY12-4012
Working height 14.0m
Platform height 12.0m
Platform capacity 400kg for two persons with tools
Platform dimension L1480×W1000
Stored height 2460mm
Stored length 2360mm
Stored width 1250mm
Length with outriggers 3350mm
Width with outriggers 2950mm
Machine weight about 1600kg
Power supply AC220V/50Hz
Motor for lifting 1.5kw
Motor for drive 0.75kw
Double control Platform and base control
Standard CE (EN280)


Optional function:

1. Move method can be manual push type or motor-propelled;

2. Horizontal platform extension: 800mm, 1000mm, 1300mm;


Product features

  •  Dual controls operation
  •  Compact design with easy quick guardrail assemblage
  •  Emergency stop buttons at both controls
  •  Emergency lowering device in case of power supply failure
  •  24V safe control voltage
  •  Overload limit
  •  Double safety protection with leveling stabilizers and outriggers support
  •  Forklift pocket
  •  No-marking wheels
  •  Conform to EN 280:2013


Safety of Electrical System

l Ergonomic control panel, power indicator, electric shock protector, circuit breaker etc. features are completely equipped.
l The operator either on the platform or on the ground could press the emergency stop button to pause the platform unexpected movement if any electrical element is failure.
l Lifting limit is controlled by positive break limit switch
l 24 V safety voltages for control circuit system

Safety of Hydraulic System

l Emergency lowering device enable you to lower the platform slowly to its ground position when power is unexpected fail.
l Hydraulic system is equipped with broken valve; it will activate automatically to stop the flowing of hydraulic fluid in case any hydraulic fitting or piping is broken so as to prevent the platform unexpected movement and ensure personnel safety on the platform.
l Piston stroke limit in cylinder acts as second lifting limit protection sequential to the electric limit switch.

Safety of Mechanism System

l CE certified stabilizers and electric safety switch elements form the interlock for platform ascending and descending.All mechanism strength for force borne structure are carefully calculated and strictly tested by experimentation, safety factor never less than the standard requirement.
l In stabilizers equipped Aerial Work Platform, patented double protection outriggers eliminate the clearance between the stabilizer and chassis so as to avoid the equipment fluctuating.

Stability and Reliability

l Adopt international high-class electric elements and hydraulic sealing material.
l Adopt international advanced original hydraulic power unit.
l Reasonable overlap length between masts, ensure the lifting mechanism having sufficient rigid when the platform is at its maximum lifting height.
l Parameter optimization of lifting system and hydraulic system, maximize platform lifting stability.
l Rarefied process ensures every component’s quality meet the whole unit’s requirement.
l Redundancy design technical applied, reduce the product malfunction probability to minimum.
l Patented guide roller device make the masts cooperate smoothly without clearance between them and the platform ascending and descending stably. Also ensure the multi-mast sets ascending and descending synchronization entirely.

Comfort and Convenience

l The ratchet wheel swing handle of threaded support bolts in the stabilizers equipped Aerial Work Platform makes it easy to adjust for achieving precise leveling of the platform.
l The assembly of movable platform guard rail could be achieved by just an ascending and descending running, and the rail position is secured and locked by a patented supporting and cramping device, it’s very convenient.
l High-strength aluminum alloy are used for all lifting mast which is light, easy and convenient to move.
l Forklift pocket for safe and easy transportation.
l Compact design makes it easy in passing through narrow and lower passages.
l The safe and convenient bubble level meter.



Packing & Shipping

LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-dust covers
Delivery time is usually 40 days according to order qty. and models.
