| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SIVGE |
| Certification: | CE |
| Model Number: | GTWY14-4214 |
| Minimum Order Quantity: | 1 Unit |
| Price: | negotiation |
| Packaging Details: | steel pallet or plywood case |
| Delivery Time: | 30-50 work days |
| Payment Terms: | D/P, L/C, T/T |
| Supply Ability: | 30 units per month |
| Product Name: | Self Propelled Aerial Work Platform | Quality Management System: | ISO9001 ISO14001 OHSAS18001 |
|---|---|---|---|
| Standards: | EN280:2013 | Move Method: | Powered Self-propeller |
| Material: | Aluminum Alloy | Color: | According To Your Request |
| High Light: | Electric Ladder Lift,Electric Platform Lift |
||
14m aluminum alloy multi mast Hydraulic Lift Ladder / one man lift with 200kg load
Specification
of 14m aluminum alloy multi mast Hydraulic Lift Ladder / one man lift with 200kg load
|
Brand |
SIVGE |
|
Model |
GTWY14-4214 |
|
Max. Platform Height |
14m |
|
Max. Working Height |
16m |
|
Loading Capacity |
200kg |
|
Number Of Person Allowed |
1 |
|
Platform Dimension (mm) |
1480*860 |
|
Outrigger Footprint (mm) |
3350*3000 |
|
Power Supply |
AC220V/50Hz |
|
Power Input(kw) |
AC:0.75/1.5kw |
|
Move method |
motor-propelled |
|
Stowed Dimension (mm) |
2360*1250*1920 |
|
Machine Weight (kg) |
About 1950 |
Optional function:
1. Move method can be manual push type or motor-propelled;
2. special specification or design service offered.
If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.

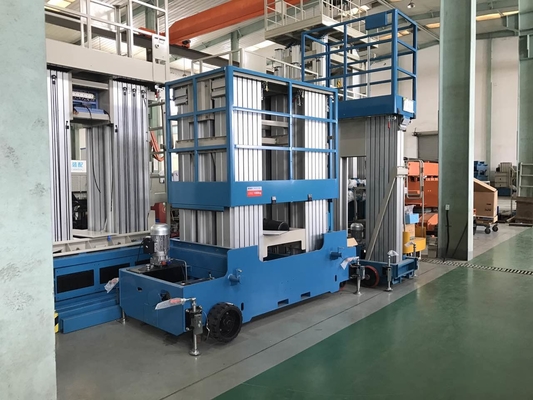

Machine photos
Steel pallet with anti-rust covers
Open top container is in need
Delivery time is usually 45 days according to order qty. and models.
