Four Mast Operate Elevated Work Platforms 10 M Working Height For Two Men Work

Basic Information
Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWY8-4008
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: plywood case for LCL; steel pallets for FCL
Delivery Time: 7-40 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 50 units per month
Detail Information
Product Name: Hydraulic Lift Ladder Application: Maintenance Service
Max.working Height: 10 Meter Rated Load/capacity: 480kg For 2 Persons
Stowed Dimension: 2360*1250*1860mm Move Method: Manual Push Around / Electrical Motor Propelled
High Light:

Electric Ladder Lift

,

Hydraulic Cargo Lift


Product Description

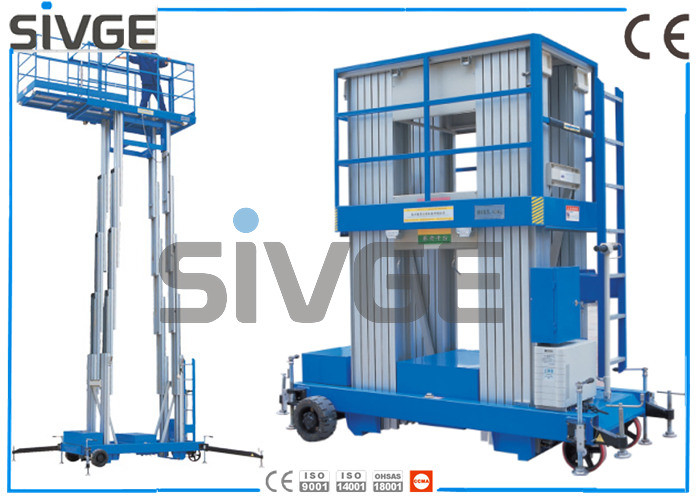

Four Mast blue Hydraulic Lift Ladder with 10m working height for two men work





Occasions suitable to use this machine:



Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.



Places may in need of this kind of machine:



Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.





Specifications of

Four Mast blue Hydraulic Lift Ladder with 10m working height for two men work



Manufacturer SIVGE
Country of origin China
Model GTWY8-4008
Max. Working height 10m
Max. Platform height 8m
Platform capacity 480kg for two persons with tools
Platform dimension L1480×W1000
Stored height 1860mm
Stored length 2360mm
Stored width 1250mm
Length with outriggers 3350mm
Width with outriggers 2950mm
Machine weight about 1400kg
Power supply AC220V/50Hz
Power input AC: 1.5kw/0.75kw
Double control

Platform and base control

Standard CE


Optional function:



1. Move method can be manual push type or motor-propelled;



2. Horizontal platform extension: 800mm, 1000mm, 1300mm;





Product features

  •  Dual controls operation
  •  24V safe control voltage
  •  Overload limit
  •  Double safety protection with leveling stabilizers and outriggers support
  •  Compact design with easy quick guardrail assemblage
  •  Emergency stop buttons at both controls
  •  Emergency lowering device in case of power supply failure
  •  Forklift pocket
  •  No-marking wheels
  •  Low maintenance requirements will save you time and money.
  •  Conform to EN 280:2013





Safety of Hydraulic System



l Emergency lowering device enable you to lower the platform slowly to its ground position when power is unexpected fail.

l Hydraulic system is equipped with broken valve; it will activate automatically to stop the flowing of hydraulic fluid in case any hydraulic fitting or piping is broken so as to prevent the platform unexpected movement and ensure personnel safety on the platform.

l Piston stroke limit in cylinder acts as second lifting limit protection sequential to the electric limit switch.



Safety of Electrical System



l Ergonomic control panel, power indicator, electric shock protector, circuit breaker etc. features are completely equipped.

l The operator either on the platform or on the ground could press the emergency stop button to pause the platform unexpected movement if any electrical element is failure.

l Lifting limit is controlled by positive break limit switch

l 24 V safety voltages for control circuit system



Safety of Mechanism System



l CE certified stabilizers and electric safety switch elements form the interlock for platform ascending and descending.All mechanism strength for force borne structure are carefully calculated and strictly tested by experimentation, safety factor never less than the standard requirement.

l In stabilizers equipped Aerial Work Platform, patented double protection outriggers eliminate the clearance between the stabilizer and chassis so as to avoid the equipment fluctuating.





Comfort and Convenience



l The ratchet wheel swing handle of threaded support bolts in the stabilizers equipped Aerial Work Platform makes it easy to adjust for achieving precise leveling of the platform.

l The assembly of movable platform guard rail could be achieved by just an ascending and descending running, and the rail position is secured and locked by a patented supporting and cramping device, it’s very convenient.

l High-strength aluminum alloy are used for all lifting mast which is light, easy and convenient to move.

l Forklift pocket for safe and easy transportation.

l Compact design makes it easy in passing through narrow and lower passages.

l The safe and convenient bubble level meter.







Safe & Stable

User's safety is the basic concern point of SIVGE.

Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.


SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.





Packing & Shipping

  • LCL: plywood case with steel pallet at bottom
  • FCL: steel pallet with anti-dust covers​
  • Delivery time is usually 40 days according to order qty. and models.
