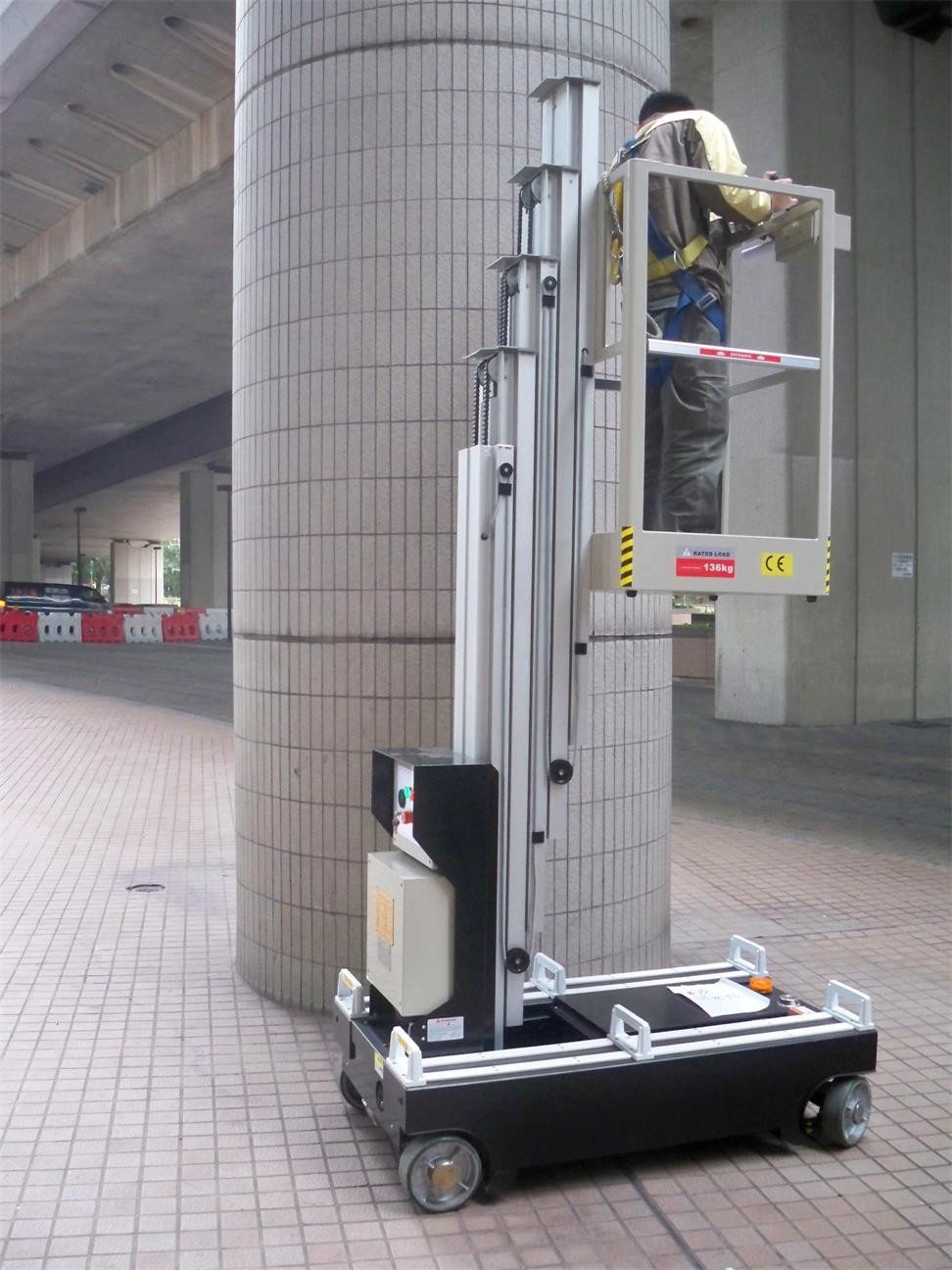

Single Mast Lift For Fixture Works , 6.2m Height Self Propelled Work Platform

China Single Mast Lift For Fixture Works , 6.2m Height Self Propelled Work Platform supplier
Single Mast Lift For Fixture Works , 6.2m Height Self Propelled Work Platform supplier Single Mast Lift For Fixture Works , 6.2m Height Self Propelled Work Platform supplier

Large Image :  Single Mast Lift For Fixture Works , 6.2m Height Self Propelled Work Platform

Product Details:

Place of Origin: China
Brand Name: SIVGE
Certification: CE/ISO9001/ISO14001/OHSAS18001
Model Number: GTWZ5-1005

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: 10PCS/20GP; plywood case for LCL
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 units per month
Detailed Product Description
Product Name: Elevated Work Platforms Max.working Height: 6.2meter
Rated Load: 136kg Stowed Dimension: 1430*800*1980mm
Move Method: Self-propelled Color: According To Your Request

single mast self-propelled aerial work platform / single man lift with 6.2m working height





  •  CE certificated
  •  Suitable for one person work on
  •  Best quality and performance
  •  Good reliable after-sales service

It is only for personal working and loading in exhibition hall, warehouse, supermarket, airport, port, etc. CE certified.
The product adopts the design of aluminum mast which is light and smart.





Specifications of

single mast self-propelled aerial work platform / single man lift with 6.2m working height





Item Z1003 Z1005 Z1006
Model-code GTWZ3-1003 GTWZ5-1005 GTWZ6-1006
Platform height(m) 3 4.5 6
Working height(m) 5 6.5 8
Capacity(kg)/occupants 160/1 136/1 136/1
Platform size(mm) 650*630 650*630 650*630
Stowed length(mm) 1430 1430 1430
Stowed width(mm) 800 800 800
Stowed height(mm) 1990 1990 1990
Machine weight(kg) 500 600 830
Raise / lower speed 28sec/34sec 31sec/36sec 31sec/36sec
Max. allowed wind speed 12.5m/s
Moving methods Drivable when fully lifted
Front wheel Steering wheel 8inch
Rear wheel Driving wheel 8inch
Climb ability 15%
Turning Radius Outside 1730mm
Turning Radius Inside 0
Brake type Loss of power brake
Ground clearance 80mm
Travel speed(Stowed)(km/h) 2.4
Travel speed (Lift)(km/h) 0.65
Power supply DC24V
Power input (kw) elevating 0.8/ driving 0.8
Battery 12V/120Ah*2
Hydraulic system capacity 5L oil capacity, system oil pressure is 10Mpa





STANDRAD FEATURES

  • One-hand proportional joystick
  • Dual controls operation (platform and ground)
  • Emergency stop buttons at both controls
  • 24V safe control voltage
  • Tilt audible alarm
  • Forklift pocket
  • Smooth, solid and non-marking tires
  • Drivable at full height
  • Emergency lowering device in case of power supply failure
  • Maintenance-free battery, with battery charge indictor
  • Two drive speed(0.8km/h when lift up; 2.5km/h stored)

Packing & Shipping


LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-rust covers

Delivery time is usually 30 days according to order qty. and models.





After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely.
